• New

Fit LED Panel 60x60 40W 3CCT | Dimmable DALI/PUSH - TRIAC - 0-10V | Lifud Driver

DIM-90538-TRIAC

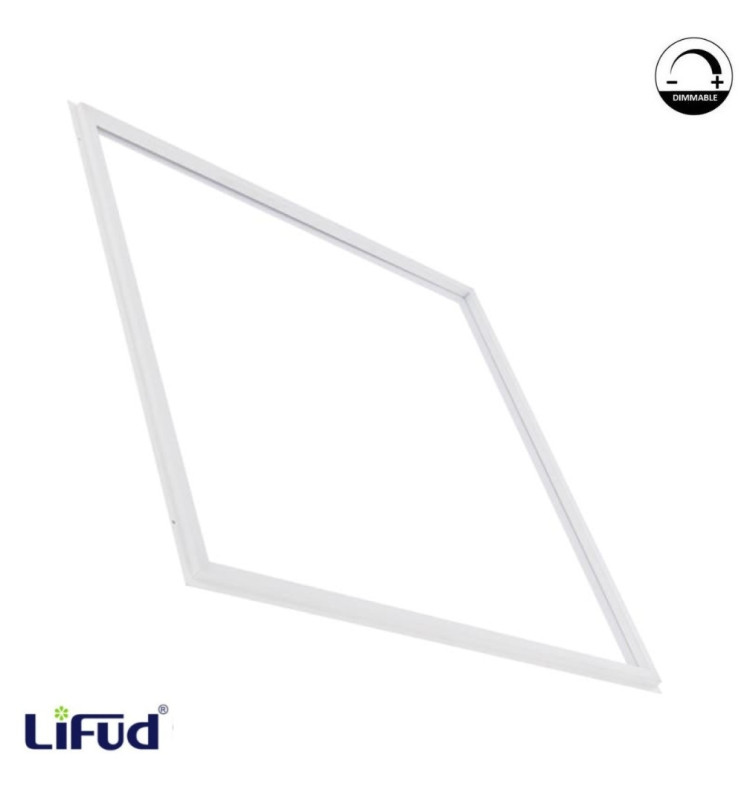

Fit Panel – LED Light Frame 40W 3CCT. Equipped with a dimmable LIFUD driver (TRIAC, 0-10V or DALI/PUSH), it allows brightness adjustment for any environment. Made of high-quality aluminum, it installs easily on 60x60 ceiling grids, offering a wide luminous surface and ENEC05 certification. The perfect choice for spaces demanding elegance, performance, and professional reliability.

  • Rated Power

    40w

  • Nominal Voltage

    220V-240V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    4000

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    100Lm/W

  • IP

    IP20

  • Diode Life Expectancy (H)

    40.000

  • Dimensions (mm)

    595X595mmH

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€37.11
No tax
Driver: DIMMABLE TRIAC
  • DIMMABLE TRIAC
  • Dimmable DALI/PUSH
  • Dimmable 0–10V
There are not enough products in stock

The minimum purchase order quantity for the product is 2.




Download PDF

Fit LED Panel 60x60 40W 3CCT | Dimmable DALI/PUSH - TRIAC - 0-10V | Lifud Driver

LED Light Frame 40W 3CCT with Dimmable LIFUD Driver combines modern design, energy efficiency, and advanced technology to deliver high-performance lighting with a flawless appearance. Designed to integrate perfectly into 60x60 cm modular ceilings, this panel provides uniform, wide, and comfortable light — ideal for offices, retail areas, schools, hospitals, and professional environments where quality and elegance are essential.

Thanks to its advanced technology, it delivers high luminous efficiency, uniform light distribution, and instant flicker-free start-up, backed by ENEC05 certification and a 5-year warranty.

Constructed from high-quality aluminum, it ensures excellent heat dissipation, extending LED lifespan and maintaining stable performance. Its ultra-slim, minimalist design blends seamlessly into any architectural setting.

Equipped with SMD2835 LEDs (140 Lm/W), it provides powerful illumination with low energy consumption. The 3CCT technology allows color temperature selection between 3000K (warm white), 4000K (neutral white), and 5700K (cool white).

Dimming Options

For projects requiring brightness control, the panel can be supplied with a dimmable LIFUD driver, available in different versions:

  • TRIAC Dimmable
    Model: LF40WTRIAC / LF-ABT040
    Compatible with most phase-cut dimmers — ideal for residential or standard commercial settings.

  • 0–10V Dimmable
    Model: LF40W0-10V / LF-ABA040
    Recommended for analog-controlled systems, commonly used in offices and schools.

  • DALI/PUSH Dimmable
    Model: LF40WDALI / LF-ADD040
    Perfect for smart buildings and high-end environments with centralized lighting management.

⚠️ Important Notice: Panels are supplied with a standard Philips driver. To make them dimmable, replace it with the LIFUD driver included in the package.

Recommended Applications

Compatible with most 60x60 modular ceilings (Armstrong type), can also be surface-mounted or suspended with accessories.

  • Corporate offices

  • Educational institutions

  • Hospitals and laboratories

  • Hotels, restaurants, and communal areas

  • Retail and shopping spaces

  • Logistics centers and technical rooms

In FactorLED we ensure that our products are guaranteed by QUALITY and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

DIM-90538-TRIAC

Data sheet

REFERENCE
DIM-90538
Rated Power
40w
Nominal Voltage
220V-240V
Colour
3CCT SELECT 3000K-4000K-5700K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+PC
Luminosity-Lm
4000
Number & Type of LEDs
SMD 2835
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
140 Lm/W
Luminous Efficiency (Lm/W)
100Lm/W
Dimmable
YES
Certifications
CE, CMIM, RoHS
IP
IP20
Diode Life Expectancy (H)
40.000
Dimensions (mm)
595X595mmH30mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Glare Rating (UGR)
17
Driver included
YES
Driver included
Lifud Driver
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
E
Warranty Years
5
