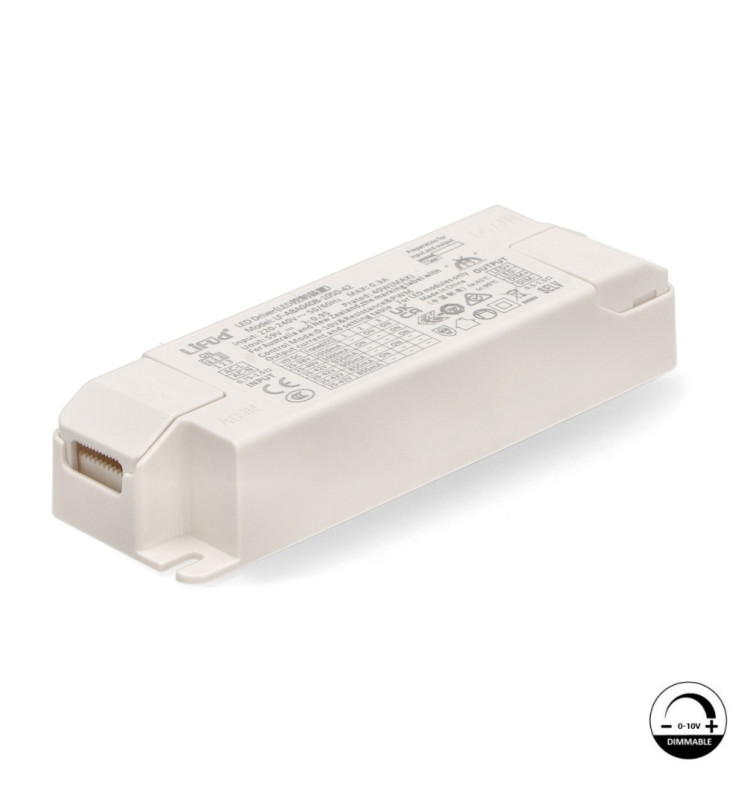

Lifud Driver – Dimmable 0–10V – For LED Luminaires up to 40W – Flicker-Free – Output 25–42V DC 800–1050mA

The LIFUD 0–10V Dimmable Driver is a high-performance professional solution designed to power and regulate LED luminaires up to 40W, with a special focus on applications that require stability, energy efficiency, and flicker-free lighting quality. This driver is ideal for Downlights, LED panels, and ceiling lights, both in residential and commercial environments.

Thanks to its advanced NO FLICKER technology, it provides stable light, protecting visual health and eliminating any perceptible flicker — especially useful in offices, clinics, or classrooms.

One of its key advantages is its multi-voltage output: it delivers a constant voltage within a 25 to 42V DC range, automatically adapting to the connected load. This means the driver can operate with different current settings (from 400 a 1050 mA), making a single model suitable for various applications. Once powered, the system adjusts the output automatically and maintains a constant voltage within the specified range.

This driver also supports multiple dimming protocols:

• 0–10V

• PWM (Pulse Width Modulation)

• Rx (variable resistance signal)

This makes it highly compatible with modern lighting control systems, smart home automation, and energy-efficient projects requiring precise dimming.

Additionally, it features overvoltage protection up to 1KV, providing excellent reliability against power surges, extending device life, and ensuring installation safety.

Its high power factor (PF) ensures efficient energy consumption, minimizing losses and contributing to a sustainable lighting system. Combined with its design without integrated output connectors, it offers complete installation flexibility and adaptability to various setups.

Key technical specifications:

• Maximum supported power: up to 40W

• Input voltage: AC220–240V

• Output current: 400 a 1050 mA

• Multi-voltage output: 25–42V DC

• Compatible dimming modes: 0–10V / PWM / Rx

• NO FLICKER technology: no perceptible flicker

• Overvoltage protection: up to 1KV

• Output connector-free design: flexible and adaptable

• High power factor: optimal energy efficiency

• Professional use: ideal for demanding installations

Ideal applications:

• Recessed LED lighting (Downlights)

• Decorative or functional LED ceiling lights

• LED panels for offices and shops

• Healthcare and educational centers (for its flicker-free stable light)

• Home automation and smart control projects

• Installations requiring versatile dimming

At FactorLED we ensure that our products are guaranteed QUALITY and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
