PACK 10 LED Panels 60x60 40W SLIM FRAME – Dimmable DALI/PUSH – TRIAC – 0-10V – Lifud Driver

DIM-PNLIF40W-91143-0-10V

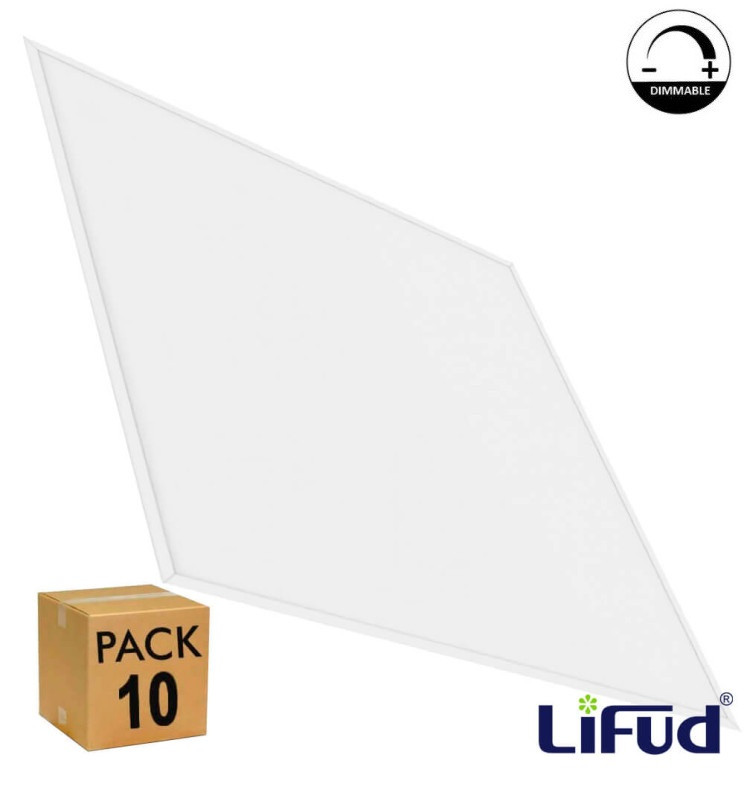

PACK 10 LED Panels 60x60 40W with Dimmable LIFUD Driver. Light up with style and efficiency with this pack of 10 professional LED panels. Choose between TRIAC, 0–10V or DALI/PUSH to adjust brightness based on the setting. Frameless design, made of aluminum, with maximum light surface and ENEC05 certification. Perfect for demanding spaces that require quality, elegance, and performance.
Sold in full boxes: 10 panels + 10 Lifud drivers.

  • Rated Power

    40w

  • Nominal Voltage

    220V-240V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    4000

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    100Lm/W

  • IP

    IP20

  • Diode Life Expectancy (H)

    40.000

  • Dimensions (mm)

    595X595mmH

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€216.90
No tax
Color temperature: 5700K - Cold White
  • Natural White - 4000K
  • 5700K - Cold White
Driver: Dimmable 0–10V
  • DIMMABLE TRIAC
  • Dimmable DALI/PUSH
  • Dimmable 0–10V



Download PDF

PACK 10 LED Panels 60x60 40W SLIM FRAME – Dimmable DALI/PUSH – TRIAC – 0-10V – Lifud Driver

PACK 10 LED Panels 60x60 40W with Dimmable LIFUD Driver, equipped with a dimmable LIFUD driver, is designed to meet the demands of professional projects requiring efficiency, versatility, and high visual comfort. Made from high‑quality aluminum with a frameless design, it provides a continuous, modern light surface perfect for offices, clinics, retail, classrooms, hotels, or logistics centers.

Thanks to advanced technology, these panels deliver high luminous performance, uniform light distribution, and instant flicker‑free startup, all backed by ENEC05 certification and a 5‑year warranty.

Dimming Options:
For projects requiring brightness control, the panel can be supplied with a dimmable LIFUD driver, chosen according to installation needs:

  • TRIAC Dimmable
    Model: LF40WTRIAC / LF‑ABT040
    Compatible with most phase‑cut dimmers. Ideal for standard residential or commercial environments, offering simple and efficient light control.

  • 0–10V Dimmable
    Model: LF40W0-10V / LF‑ABA040
    Recommended for installations with analog controllers, commonly used in offices, schools, and retail with low‑voltage control systems.

  • DALI/PUSH Dimmable
    Model: LF40WDALI / LF‑ADD040
    Perfect for high‑end applications with home‑automation or centralized lighting control systems – ideal for smart buildings.

⚠️ Important Notice: The panels are supplied by default with a Philips driver. To make them dimmable, this must be replaced with the LIFUD driver included in the pack.

Recommended Applications
These LED panels rank among the most versatile lighting solutions available. The 60×60 cm format fits most Armstrong‑type modular ceilings and can also be surface‑ or pendant‑mounted using optional accessories.

Common applications include:

  • Offices and corporate workspaces

  • Educational institutions and universities

  • Hospitals, clinics, and laboratories

  • Hotels, restaurants, and public areas

  • Retail spaces and large stores

  • Logistics centers, technical rooms, and cleanrooms

Thanks to low energy consumption and high luminous efficiency, this LED panel significantly reduces maintenance and electricity costs in intensive‑use installations.

In FactorLED we ensure that our products are guaranteed by QUALITY and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

DIM-PNLIF40W-91143-0-10V

Data sheet

REFERENCE
DIM-PNLIF40W
Rated Power
40w
Nominal Voltage
220V-240V
Colour
4000K - 5700K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+PC
Luminosity-Lm
4000
Number & Type of LEDs
SMD 2835
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
140 Lm/W
Luminous Efficiency (Lm/W)
100Lm/W
Dimmable
YES
Certifications
CE, CMIM, RoHS
IP
IP20
Diode Life Expectancy (H)
40.000
Dimensions (mm)
595X595mmH30mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Glare Rating (UGR)
17
Driver included
YES
Driver included
Lifud Driver
Energy Rating (2021-UE-2019/2015)
A+
Energy Rating (2023 - UE-2019/2015)
E
Warranty Years
5
