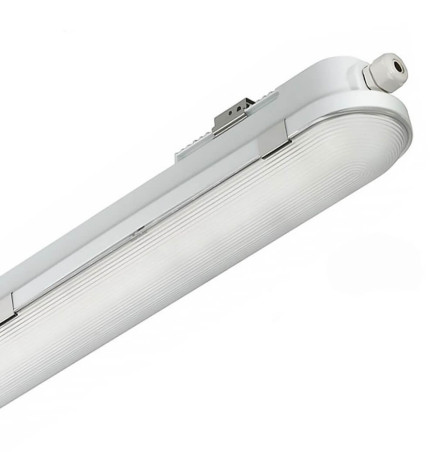

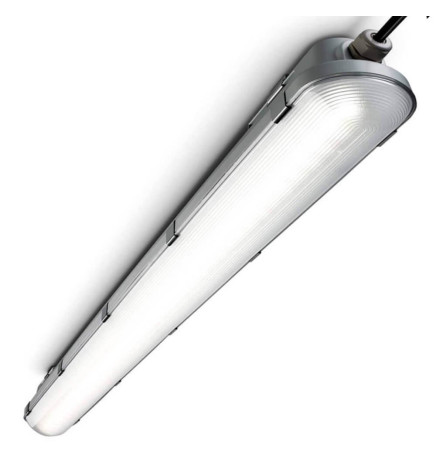

40W LED Waterproof Light with Emergency Kit & Radar Sensor | COREPLUS EVO 120CM | Philips Xitanium | 3CCT | IP66

KIT-SNS-91456

The COREPLUS EVO 120cm  LED waterproof luminaire with integrated emergency light system (3W, up to 3 h autonomy) and Plug & Play radar motion sensor. Selectable power (25W / 30W / 35W / 40W) and 3CCT color temperature (3000K/4000K/6000K) for maximum versatility. With Philips Xitanium driver and SMD2835 LEDs 140 Lm/W, high efficiency (FP > 0.9), IP66 & IK10 protection, and uniform light. Semi-transparent cover and dual-end connection enable easy series installations in any environment.

At the following link, video tutorial of the assembly of the waterproof fixture with emergency kit + motion sensor: https://www.youtube.com/watch?v=Xf5t-tWE0KQ

  • Rated Power

    Power Sele

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    5600Lm

  • Beam Angle (º)

    120°

  • Luminous Efficiency (Lm/W)

    140 Lm/W

  • IP

    IP66

  • Diode Life Expectancy (H)

    35.000

  • Dimensions (mm)

    L: 1150 W:

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€44.60
No tax
Options: Radar Motion Sensor
  • Emergency Kit
  • Radar Motion Sensor
  • Emergency Kit + Radar Motion Sensor



Download PDF

Waterproof LED 40W with Emergency Kit and Motion Sensor | COREPLUS EVO 120CM | Philips Xitanium Driver | 3CCT | IP66

The new generation of COREPLUS EVO LED waterproof luminaires represents the perfect combination of energy efficiency, reliability, and professional versatility. Designed for demanding environments, this fixture provides powerful, uniform, and safe illumination, even in the event of a power failure.

Total versatility

The COREPLUS EVO range adapts to every installation need:

  • Waterproof light with emergency kit

  • Waterproof light with radar motion sensor

  • Waterproof light with emergency kit + radar motion sensor

Built-in emergency kit.
One of the key innovations of the COREPLUS EVO is its integrated emergency lighting function. In case of a power outage, the luminaire automatically turns on with 3W output and provides up to 3 hours of autonomy, ensuring sufficient safety lighting for evacuation or basic tasks. This system requires no additional installation, simplifying implementation and improving safety in any environment.

Radar Motion Sensor

The LED luminaire is equipped with a next-generation radar motion sensor capable of detecting the presence of people or moving objects. This smart sensor allows the light to activate automatically when movement is detected, enhancing comfort and optimizing energy consumption, as the light only turns on when truly needed. This makes the COREPLUS EVO ideal for occasional traffic areas such as corridors, parking lots, storage areas, and exterior access points.

Sensor specifications:

  • Detection radius: r ≥ 3 m (ceiling mounting), r ≥ 8 m (wall mounting)

  • Detection speed: 1 m/s, 100 % sensitivity, 165 cm person

  • Mounting height: 2.5–5 m (ceiling), 2–3 m (wall)

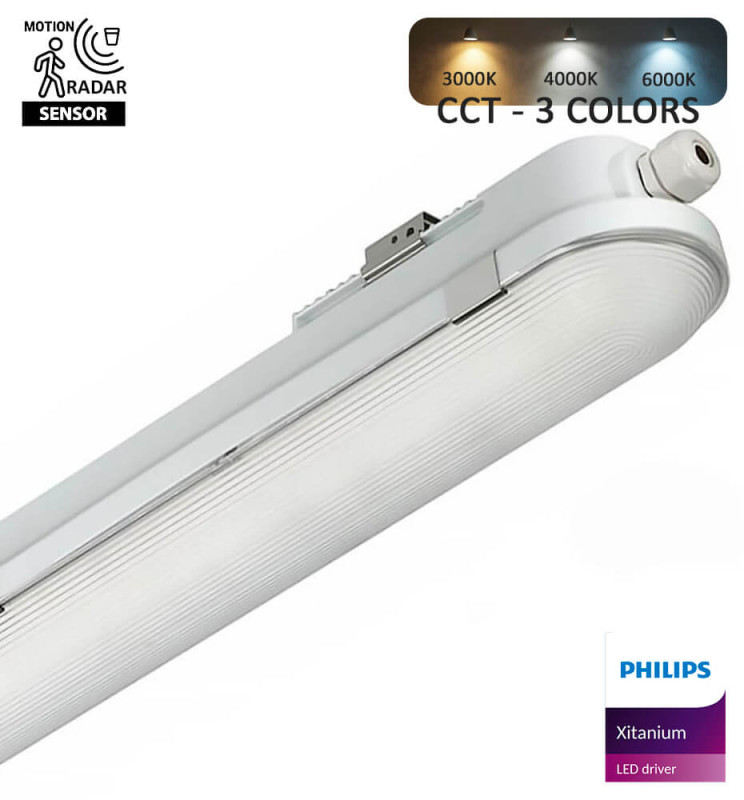

Thanks to its advanced technology, it allows power selection (25W / 30W / 35W / 40W) and 3CCT color temperature adjustment (3000K / 4000K / 6000K), easily adapting to any space or lighting need. Its Philips Xitanium non-isolation driver and high-performance SMD2835 LEDs (140 Lm/W) ensure stable operation, high efficiency (FP > 0.9), and long service life, reducing consumption and maintenance costs.

The IP66 and IK10 protection guarantees total resistance to dust, moisture, impact, and extreme environmental conditions. Its semi-transparent cover provides uniform light distribution, preventing glare and improving visibility in large areas. The dual-ended connection system allows for quick and secure series installations, optimizing assembly time in industrial and commercial projects.

The COREPLUS EVO range also offers customization options, such as adding a Plug & Play radar motion sensor, enabling intelligent on/off control for even greater energy savings. Both systems (emergency kit and sensor) are available in our catalog.

Applications:
Thanks to its robust design, high light output, and advanced protection, the COREPLUS EVO waterproof LED luminaire with emergency light is ideal for:

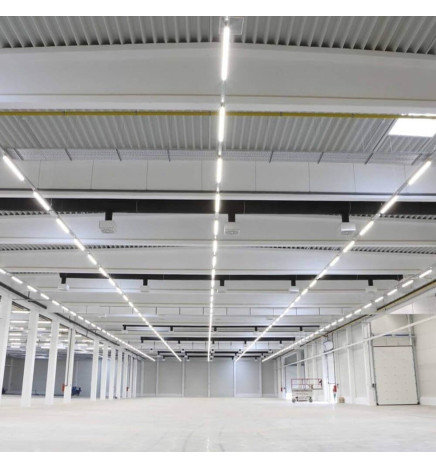

  • Industrial warehouses and storage facilities

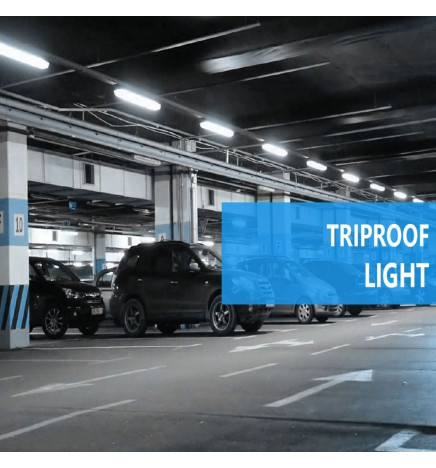

  • Garages, parking lots, and basements

  • Cold rooms and refrigeration areas

  • Industrial kitchens and food preparation areas

  • Mechanical workshops and maintenance zones

  • Outdoor corridors, access areas, and transit zones

The COREPLUS EVO is the ultimate professional solution for those seeking efficient, safe, and durable lighting, with the added reliability of an integrated emergency system and Philips Xitanium quality assurance.

In FactorLED we assure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

KIT-SNS-91456

Data sheet

REFERENCE
KIT91456
Rated Power
Power Select: 25W / 30W / 35W / 40W
Colour
3CCT SELECT 3000K-4000K-6500K
CRI - Chromatic Rendiment Index
80
Construction Material
ABS + Makrolon® 2807
Luminosity-Lm
5600Lm
Number & Type of LEDs
SMD 2835
Beam Angle (º)
120°
Luminous diodo LED (Lm/W)
165Lm/W
Luminous Efficiency (Lm/W)
140 Lm/W
Certifications
CE - RoHS - EMC - UL
IP
IP66
Diode Life Expectancy (H)
35.000
Dimensions (mm)
L: 1150 W:81 H:71 mm
Power Factor (PF)
0.95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Customizable with Plug & Play emergency kit and Radar motion sensor.
Impact Protection (IK)
IK10
Driver included
Philips Xitanium Non Isolated 3CCT SWITCH
Energy Rating (2023 - UE-2019/2015)
E
Warranty Years
5
