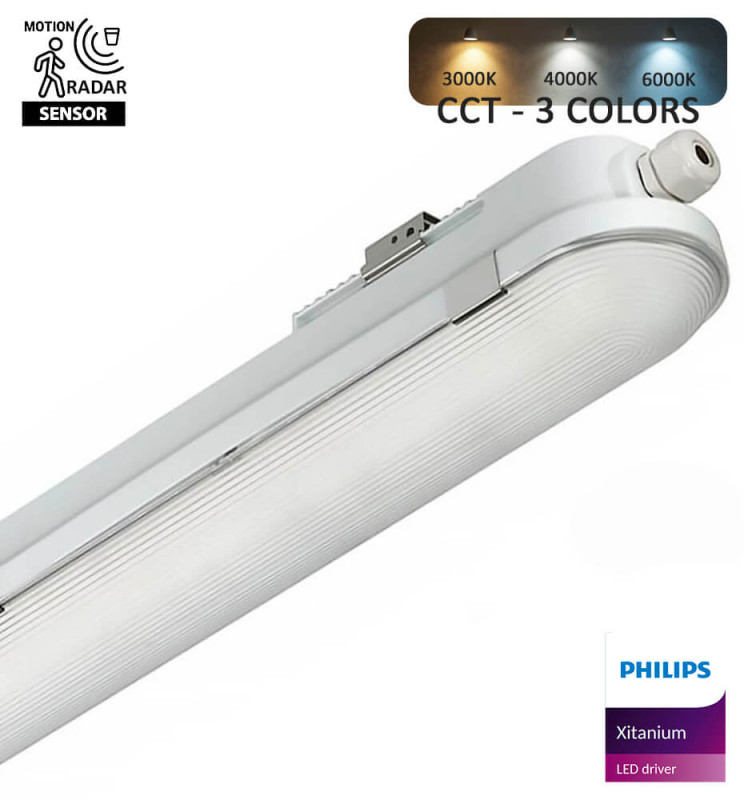

20W LED Waterproof Batten with Radar Sensor | COREPLUS EVO 60CM | Philips Xitanium Driver | 3CCT | IP66

Reference: KIT-SNS-91455

The COREPLUS EVO 60 cm LED waterproof fixture features a Plug & Play radar motion sensor, delivering highly accurate detection. With selectable wattage (12W / 15W / 18W / 20W) and 3CCT color temperature (3000K / 4000K / 6000K), it offers maximum adaptability. Equipped with a Philips Xitanium driver and 140 lm/W SMD2835 LEDs, it ensures high efficiency, power factor > 0.9, and IP66 & IK10 protection.
Its semi-frosted cover and dual-end connection allow easy series installation for seamless, uniform lighting.

At the following link, video tutorial of the assembly of the waterproof fixture with emergency kit + motion sensor: https://www.youtube.com/watch?v=Xf5t-tWE0KQ

Power Sele
80
2800Lm
120°
140 Lm/W
IP66
35.000
L: 550 W:8

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€35.13

No tax

Options: Radar Motion Sensor

Radar Motion Sensor

Download PDF

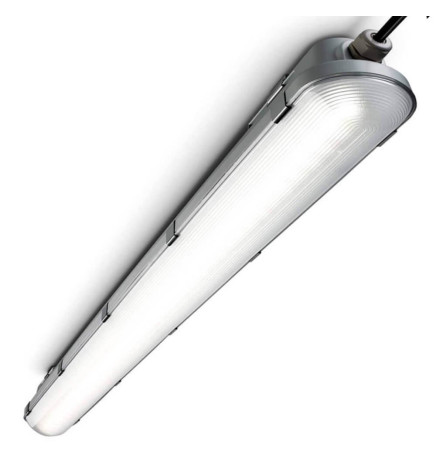

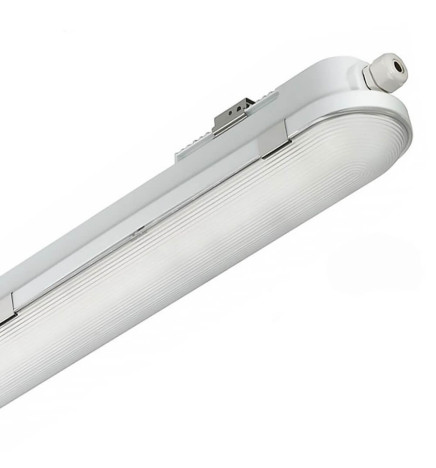

20W Waterproof LED Batten with Radar Motion Sensor | COREPLUS EVO 60CM | Philips Xitanium Driver | 3CCT | IP66

The new generation of COREPLUS EVO waterproof LED battens offers the perfect combination of energy efficiency, reliability, and professional versatility. Designed for demanding environments, it provides powerful, uniform, and safe illumination, even during power failures.

Total versatility

The COREPLUS EVO range adapts to every installation requirement:

Waterproof batten with radar motion sensor

Choose the version that best suits your project and enjoy professional, safe, and efficient lighting backed by Philips Xitanium quality and the advanced design of COREPLUS EVO.

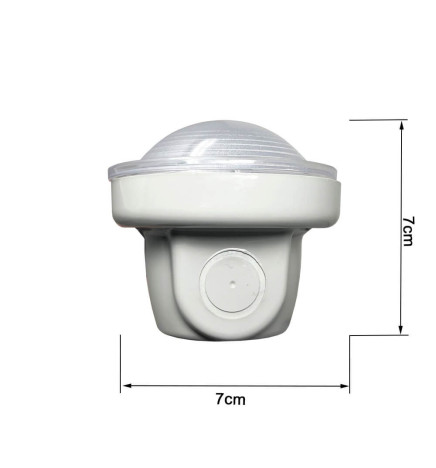

Radar motion sensor

The batten includes a next-generation radar motion sensor, capable of detecting people or moving objects. This smart system allows automatic activation, improving comfort and reducing energy consumption, since the light turns on only when necessary.

Ideal for corridors, parking areas, storage rooms, and outdoor access zones.

Sensor specifications:

Detection radius: ≥ 3 m (ceiling) / ≥ 8 m (wall)
Detection speed: 1 m/s
Sensitivity: 100 %
Installation height: 2.5–5 m (ceiling) / 2–3 m (wall)

Thanks to its advanced technology, it allows power selection (12W-15W-18W-20W) and 3CCT color adjustment (3000K / 4000K / 6000K). The Philips Xitanium driver and SMD2835 LEDs (140 lm/W) ensure stable performance, high efficiency (FP > 0.9) and long lifespan.

With IP66 and IK10 protection, it resists dust, moisture, impact, and extreme environments. Its semi-transparent diffuser provides uniform, glare-free lighting. The dual-end connection system makes series installation fast and secure.

The COREPLUS EVO range also supports additional features such as the Plug & Play radar sensor, ideal for maximizing energy savings.

Applications

Ideal for:

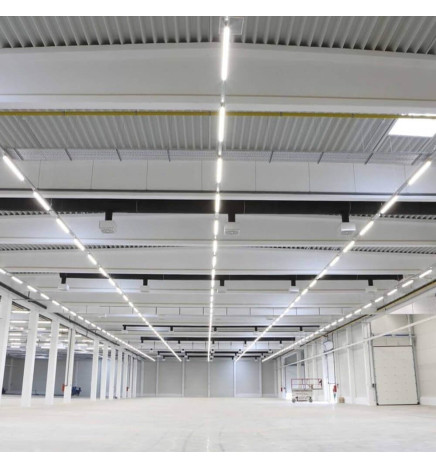

Industrial buildings and warehouses

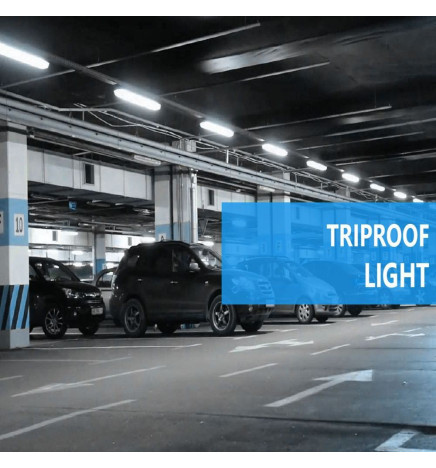

Garages, parking lots, and basements
Cold rooms
Industrial kitchens
Workshops
Outdoor corridors and transit areas

The COREPLUS EVO is the ultimate solution for those seeking efficient, safe, long-lasting lighting, backed by Philips Xitanium quality.

FactorLED guarantees QUALITY products with technical sheets for wholesale, distribution, and import.

Reference KIT-SNS-91455

Data sheet

REFERENCE: KIT91455
Rated Power: Power Select: 12W / 15W / 18W / 20W
Colour: 3CCT SELECT 3000K-4000K-6500K
CRI - Chromatic Rendiment Index: 80
Construction Material: ABS + Makrolon® 2807
Luminosity-Lm: 2800Lm
Number & Type of LEDs: SMD 2835
Beam Angle (º): 120°
Luminous diodo LED (Lm/W): 165Lm/W
Luminous Efficiency (Lm/W): 140 Lm/W
Certifications: CE - RoHS - EMC - UL
IP: IP66
Diode Life Expectancy (H): 35.000
Dimensions (mm): L: 550 W:81 H:71 mm
Power Factor (PF): 0.95
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s
Other Information: Customizable with Plug & Play emergency kit and Radar motion sensor.
Other Information: Emergency Kit CYANTRONIC 3W - 3h Autonomy
Impact Protection (IK): IK10
Driver included: Philips Xitanium Non Isolated 3CCT SWITCH
Energy Rating (2023 - UE-2019/2015): E
Warranty Years: 5
