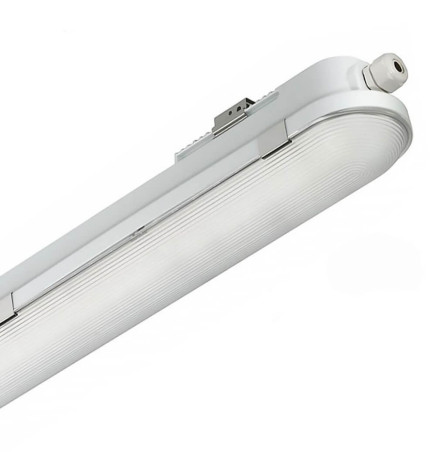

LED Waterproof Light 40W COREPLUS EVO 120CM | Philips Xitanium Driver | 3CCT | IP66

TPPHL40W-CCT-91456

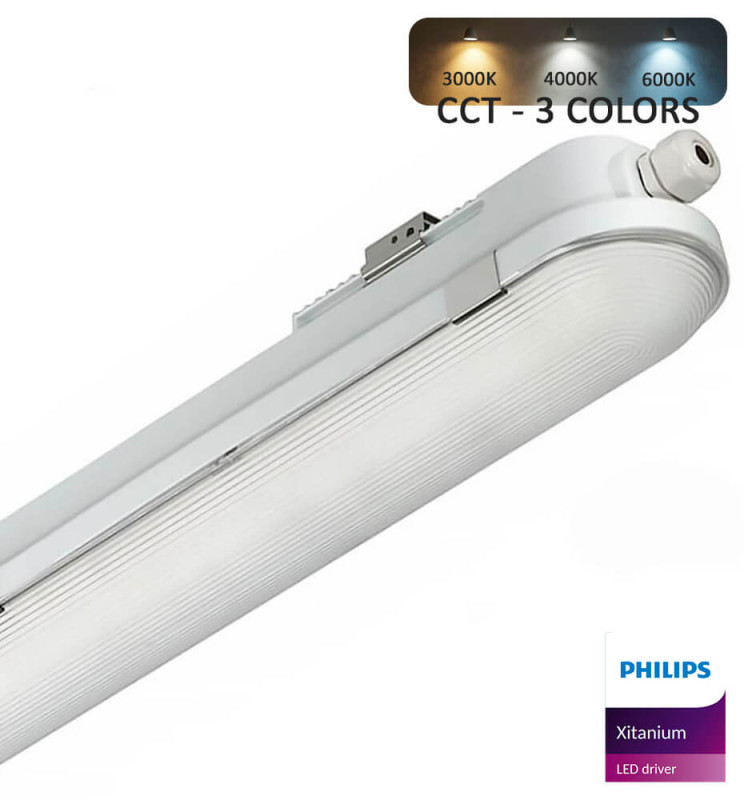

The new generation of COREPLUS EVO 120 cm waterproof LED battens combines power and versatility with selectable wattage (25W / 30W / 35W / 40W) and 3CCT color temperature (3000K / 4000K / 6000K). Equipped with a Philips Xitanium driver and high-efficiency SMD2835 LEDs (140 Lm/W), it offers maximum performance (FP > 0.9), IP66 and IK10 protection, and bright, uniform light in any environment. Its semi-transparent diffuser and dual-end connection make series installation easy.
Customizable with Plug & Play emergency kit and Radar motion sensor.

  • Rated Power

    Power Sele

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    5600Lm

  • Beam Angle (º)

    120°

  • Luminous Efficiency (Lm/W)

    140 Lm/W

  • IP

    IP66

  • Diode Life Expectancy (H)

    35.000

  • Dimensions (mm)

    L: 1150 W:

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€33.86
No tax



Download PDF

LED Waterproof Batten 40W COREPLUS EVO 120CM | Philips Xitanium Driver | 3CCT | IP66

The new generation of COREPLUS EVO 120 cm waterproof LED battens is designed to provide maximum efficiency, durability, and adaptability in professional and demanding environments. With advanced technology featuring selectable wattage (25W / 30W / 35W / 40W) and adjustable 3CCT color temperature (3000K / 4000K / 6000K), it allows lighting to be tailored to each space, ensuring visual comfort, performance, and energy savings.

Equipped with a Philips Xitanium non-Isolation driver and SMD2835 LEDs with 140 Lm/W, the COREPLUS EVO delivers powerful, stable, and efficient lighting with a high power factor (FP > 0.9). It offers IP66 and IK10 protection, ensuring full resistance against dust, moisture, impacts, and the most demanding environmental conditions.

The semi-transparent cover provides uniform light distribution, reducing glare and enhancing visibility in large areas. Its dual-end connection allows for quick and safe series installations, reducing installation time and costs in professional projects.

The COREPLUS EVO range stands out for its versatility and customization: it can include an emergency kit for safety lighting in case of power failure, and a Plug & Play motion sensor, allowing intelligent on/off control and optimized energy consumption. Both kits are available in our catalog.

Uses and Applications
Thanks to its robust design, high performance, and advanced protection, the COREPLUS EVO 60 cm waterproof LED batten is ideal for:

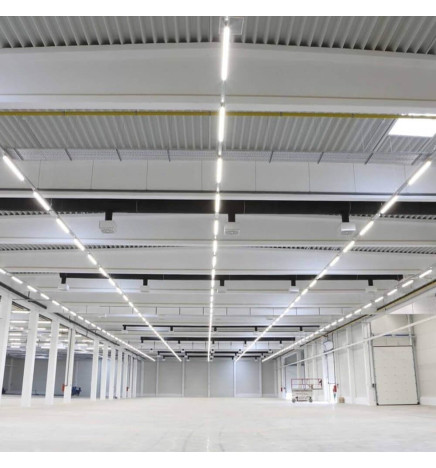

  • Industrial warehouses and storage facilities

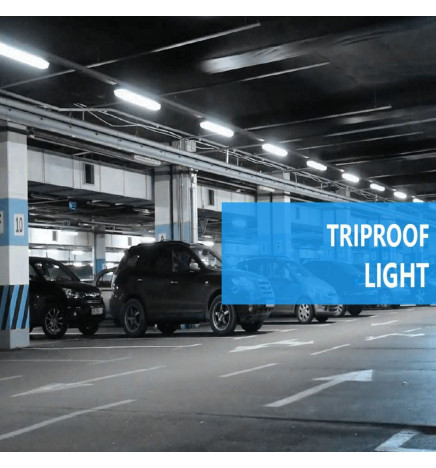

  • Garages, car parks, and basements

  • Cold rooms and refrigeration areas

  • Industrial kitchens and food handling areas

  • Mechanical workshops and maintenance areas

  • Outdoor corridors, entrances, and transit areas

The COREPLUS EVO represents the ultimate professional solution for those seeking reliability, energy efficiency, and long lifespan in a high-performance waterproof LED luminaire.

In FactorLED we assure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

TPPHL40W-CCT-91456

Data sheet

REFERENCE
TPPHL40W-CCT-91456
Rated Power
Power Select: 25W / 30W / 35W / 40W
Colour
3CCT SELECT 3000K-4000K-6500K
CRI - Chromatic Rendiment Index
80
Construction Material
ABS + Makrolon® 2807
Luminosity-Lm
5600Lm
Number & Type of LEDs
SMD 2835
Beam Angle (º)
120°
Luminous diodo LED (Lm/W)
165Lm/W
Luminous Efficiency (Lm/W)
140 Lm/W
Certifications
CE - RoHS - EMC - UL
IP
IP66
Diode Life Expectancy (H)
35.000

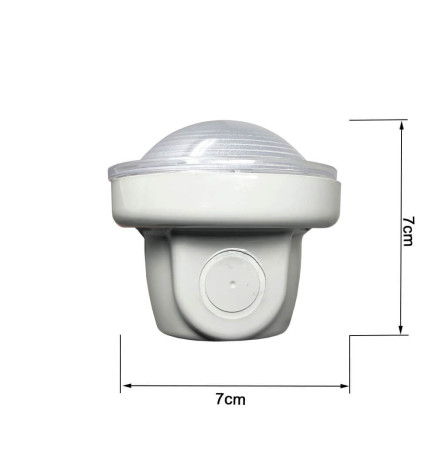

Dimensions (mm)
L: 1150 W:81 H:71 mm
Power Factor (PF)
0.95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Customizable with Plug & Play emergency kit and Radar motion sensor.
Impact Protection (IK)
IK10
Driver included
Philips Xitanium Non Isolated 3CCT SWITCH
Energy Rating (2023 - UE-2019/2015)
E
Warranty Years
5
