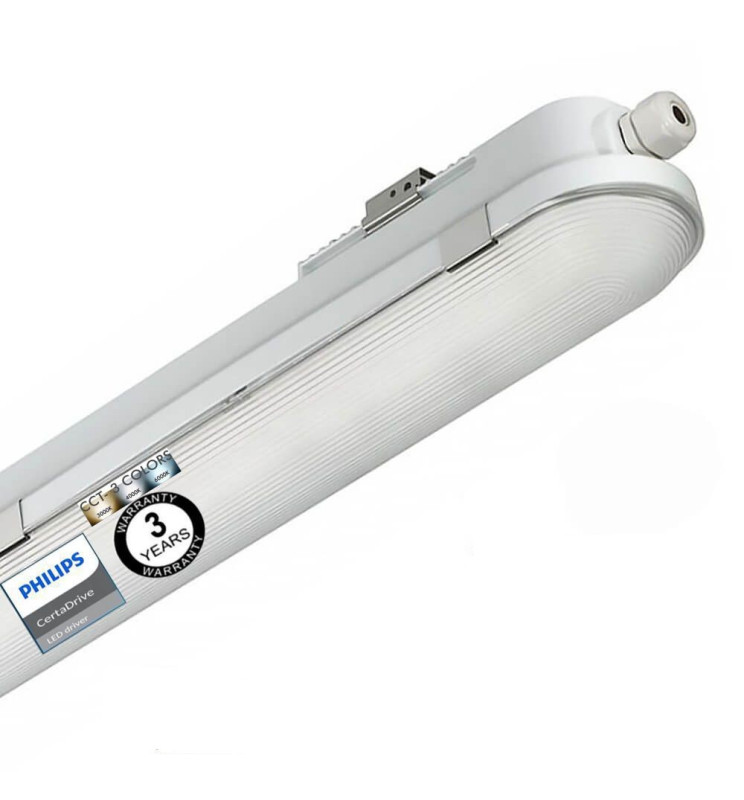

40W Integrated-LED Tri-Proof Light Philips Driver - CCT - 120cm

LED Tri-proof Light 40W COREPLUS 120cm | Philips CertaDrive | 3CCT | IP65

Reference: TPPHL40W-CCT-90497

The COREPLUS 150 cm LED tri-proof light offers selectable power (25W / 30W / 40W) and adjustable color temperature (3000K / 4000K / 5700K) thanks to its 3CCT technology. Equipped with a Philips CertaDrive driver and high-performance SMD2835 LEDs (140 Lm/W), it provides uniform and bright light in any setting. It features a semi-transparent cover for even light distribution and dual-end connection for easy series installations. With IP65 and IK08 protection, it is ideal for demanding environments. Power factor +0.95 ensures maximum efficiency. The professional and adaptable solution your projects need.

40W
170 - 265V
85
5600
150º
140 Lm/W
IP65-Outdo
100.000
L:1200 W:7

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€31.89

No tax

Download PDF

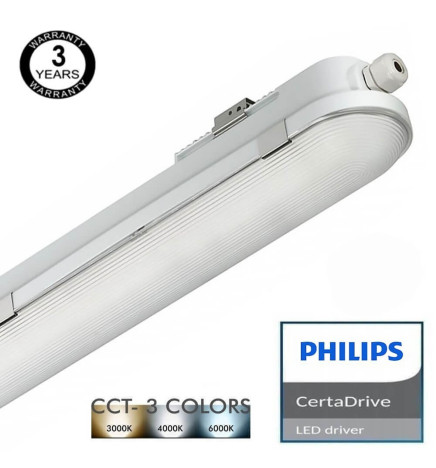

LED Tri-proof Light 40W COREPLUS 120cm | Philips CertaDrive | 3CCT | IP65

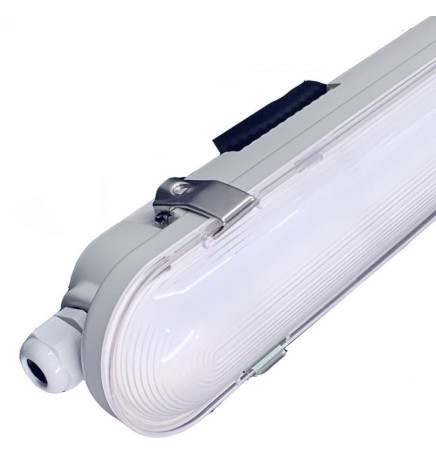

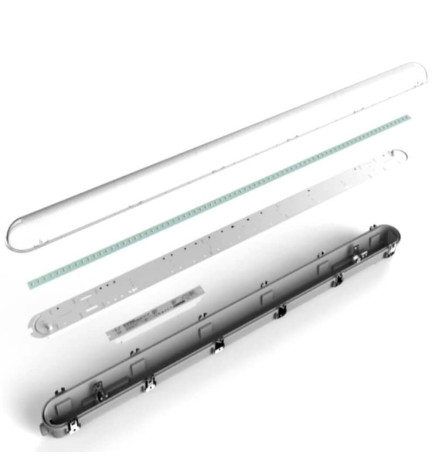

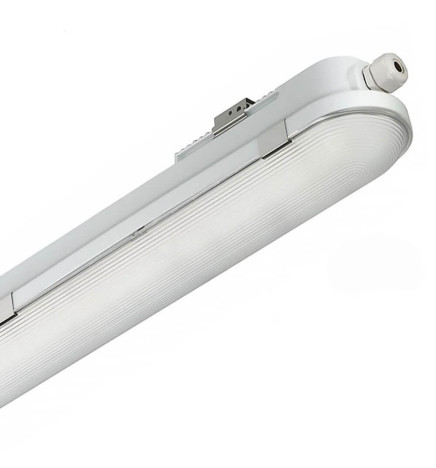

The 120cm 40W Integrated-LED Tri-Proof Light Philips Driver power presents its connection to a previously marked end. It is an opal strip made of PC. Its coverage avoids dazzling.

120° angle with projection for high quality distributed light.

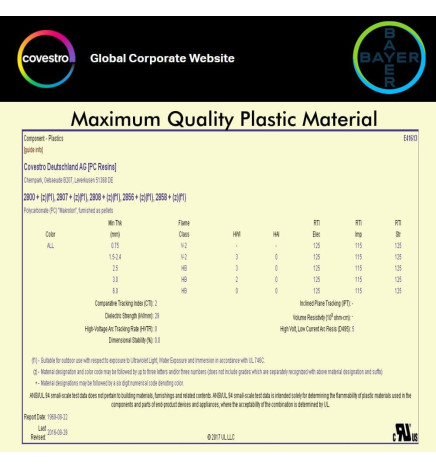

The cover material is Makrolon® 2807. It is a very high quality material which can withstand extreme temperatures (280-320°C) and is RoHS and UL certified. It complies with ISO 7391-PC

Its direct connection to 170-265v eliminates the expense of using a ballast and starter in traditional lighting devices, resulting in better performance and longer life.

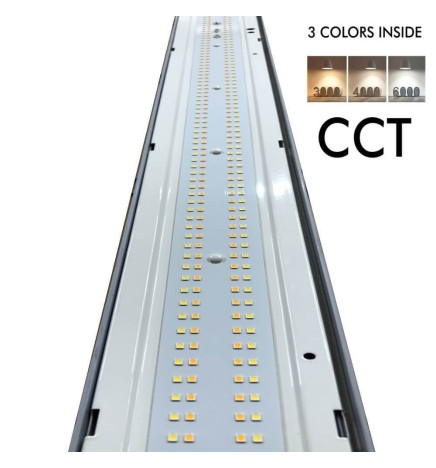

The Tri-Proof Light is composed of the SMALITE SMD-2835 diode with high luminosity, quality and efficiency Lm/w, with DRIVER PHILIPS ISOLATED, which is a technological advance in High Efficiency, being a very interesting option in all types of indoor applications.

It achieves greater savings, avoids light flickering when the luminaire is switched on and thus achieves instantaneous ignition with this LED strip.

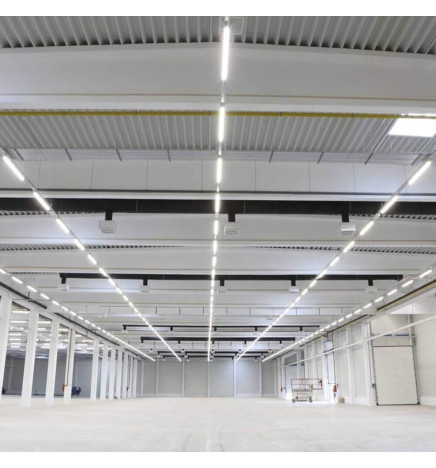

Uses of the 40W Integrated-LED Tri-Proof Light Philips Driver COREPLUS - CCT - 120cm

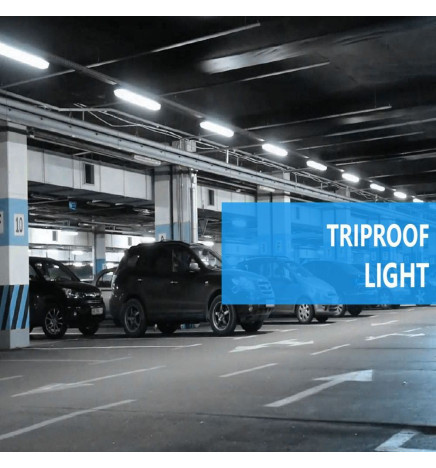

Garages
Corridors
Shopping centres
Hospitals

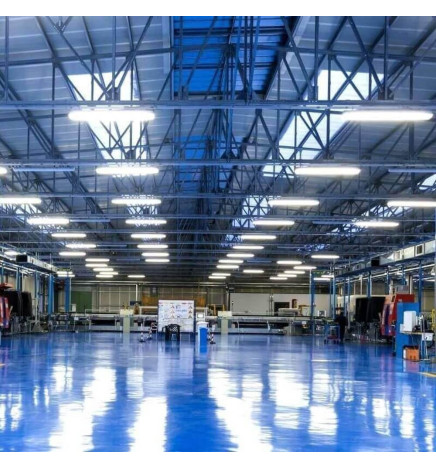

Factories
Warehouses

In FactorLED we assure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Reference TPPHL40W-CCT-90497

Data sheet

REFERENCE: TPPHL40W-CCT-90497
Rated Power: 40W
Nominal Voltage: 170 - 265V

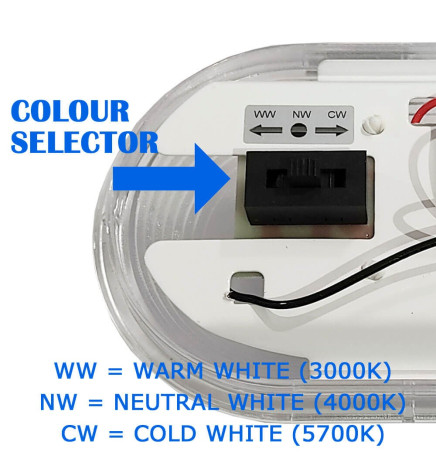

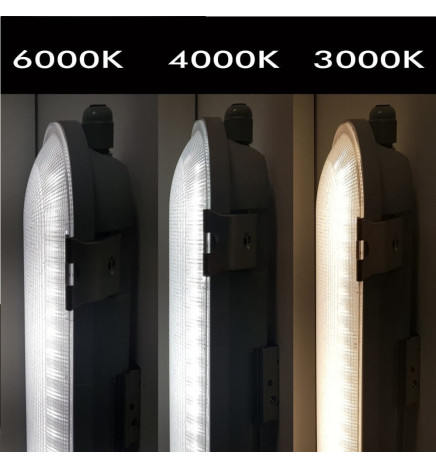

Colour: SELECTABLE COLOUR: 3000K-4000K-6000K
CRI - Chromatic Rendiment Index: 85
Construction Material: ABS + Makrolon® 2807
Luminosity-Lm: 5600

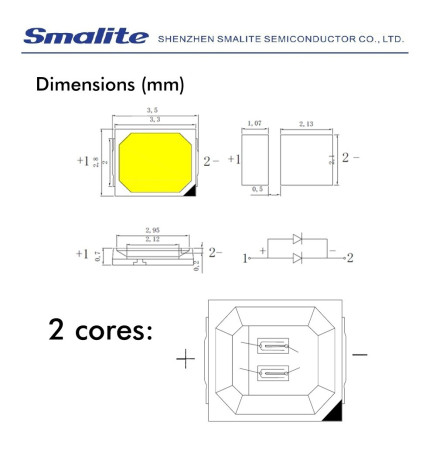

Number & Type of LEDs: SMD 2835
Beam Angle (º): 150º
Luminous diodo LED (Lm/W): 140 Lm/W
Luminous Efficiency (Lm/W): 140 Lm/W
Certifications: CE - RoHS - EMC - UL

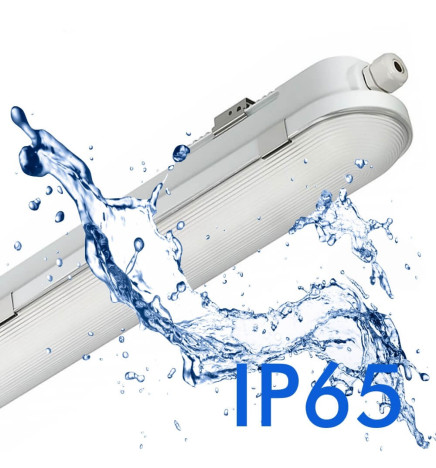

IP: IP65-Outdoor
Diode Life Expectancy (H): 100.000

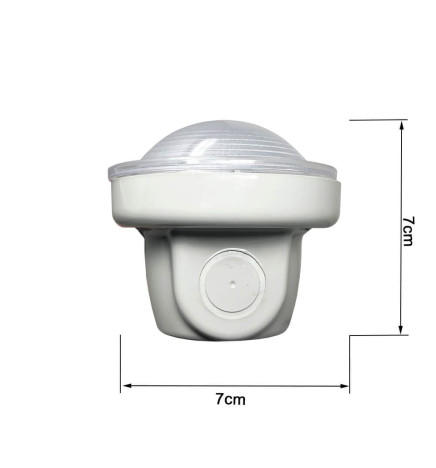

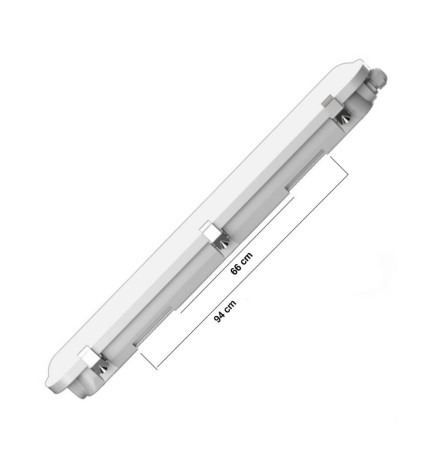

Dimensions (mm): L:1200 W:70 H:70 mm
Power Factor (PF): 0,95
Frequency (Hz): 50/60Hz
Temperature Range (ºC): -20°C ~ +55°C
On/Off Cycles: 100.000
Starting Time (s): 0,2s

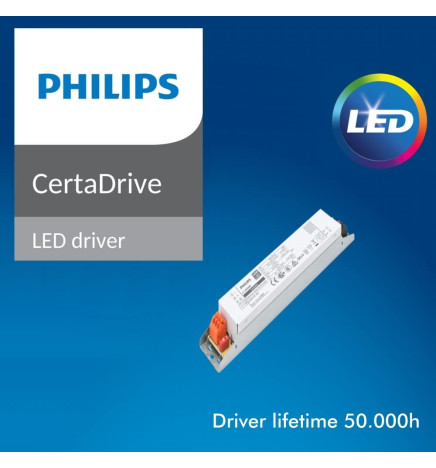

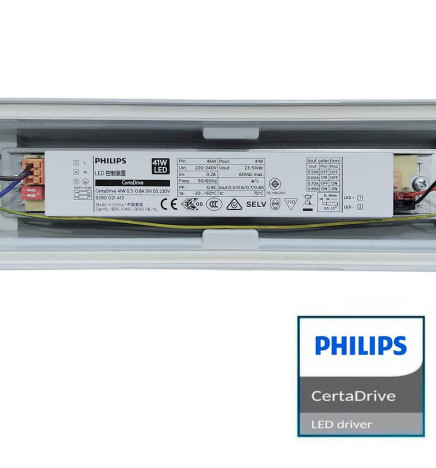

Other Information: CertaDrive Linear Isolated LED Drivers
Impact Protection (IK): IK08

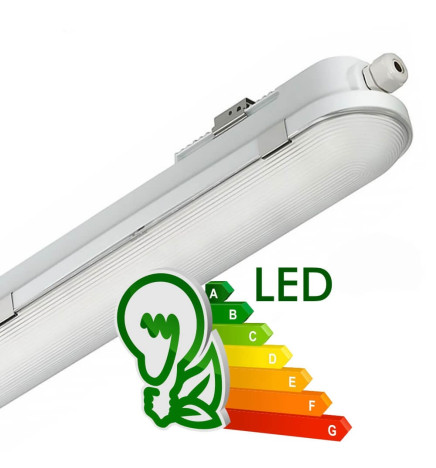

Energy Rating (2021-UE-2019/2015): A+
Warranty Years: 3
