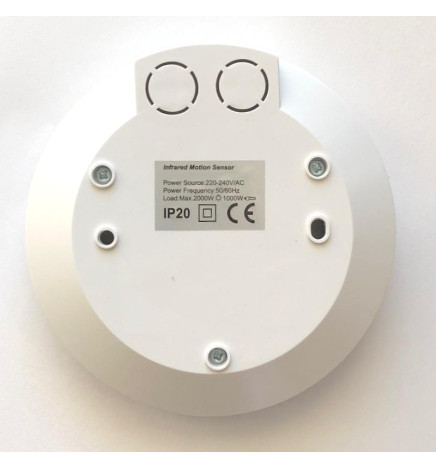

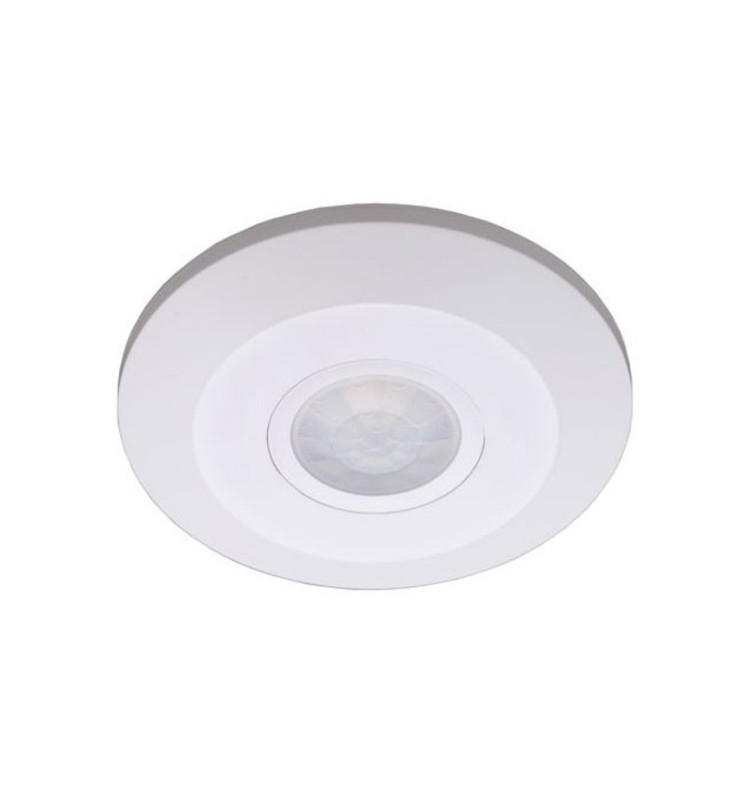

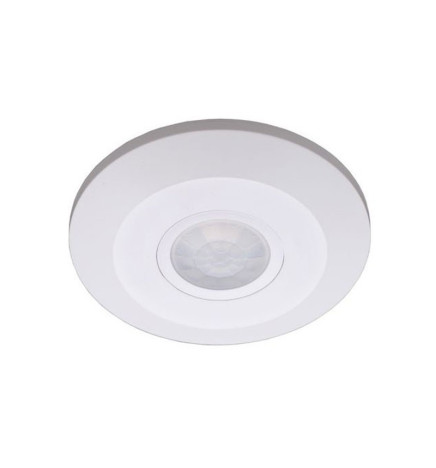

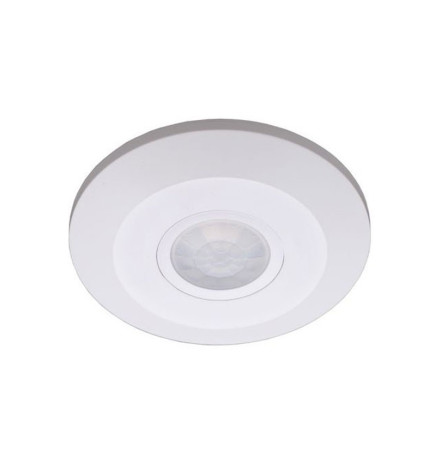

Motion Detector Slim AC220-240V

8059

Infrared surface detector Slim with high sensitivity Use the local source of activation when it enters the detection zone. Adjustable time and brightness, with detector twilight e incorporates a timer of at least 5 seconds to 7 minutes. Maximum range of detection 360 ° and a distance of 6 meters.

  • Rated Power

    Max. 2000W

  • Nominal Voltage

    220V-240V

  • Beam Angle (º)

    360º

  • Diode Life Expectancy (H)

    30.000

  • Dimensions (mm)

    Ø115mm H:2

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€7.09
No tax



Download PDF
  • Video: Motion Detector Slim AC220-240V

Infrared surface detector Slim with high sensitivity Use the local source of activation when it enters the detection zone. Adjustable time and brightness, with detector twilight e incorporates a timer of at least 5 seconds to 7 minutes. Maximum range of detection 360 ° and a distance of 6 meters.

8059

Data sheet

REFERENCE
8059
Rated Power
Max. 2000W (incandescent). 500W (LED)
Nominal Voltage
220V-240V
Construction Material
Flame retardant thermoplastic
Beam Angle (º)
360º
Certifications
CE - ROHS
Diode Life Expectancy (H)
30.000
Dimensions (mm)
Ø115mm H:21mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
6 m.
Control modes
Infrared
Warranty Years
2
