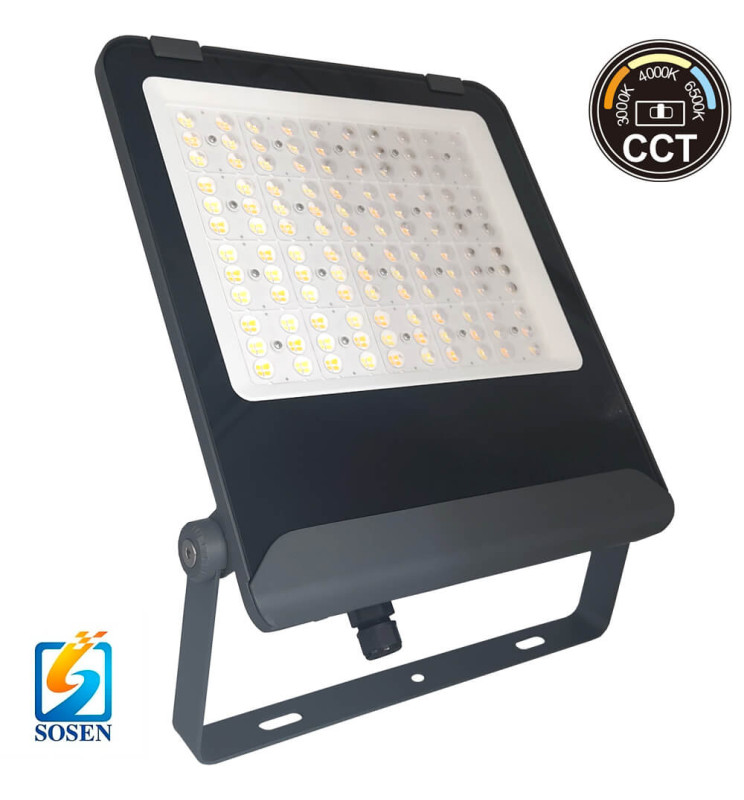

LED Floodlight 200W | MAXLITE | 3CCT SOSEN Driver | IP65 160Lm/W | 5 Years Warranty

FL200W-CCT-91370-60

Professional MAXLITE LED Floodlight with adjustable power (100W/150W/200W) via DIP switch, ideal for demanding lighting applications in architectural, industrial or urban projects requiring versatility and high performance. Features 3CCT technology (3000K/4000K/6500K), high-efficiency SOSEN driver, and IP65/IK08 protection. Comes standard with a 90° optic for precise lighting, with the option to replace it with a 60° lens for tighter focus or remove the standard lens to expand the beam angle to 120°, allowing light distribution to be tailored to the application. With quick connector and anti-condensation valve, ensures safe installation, long-lasting performance, and a 50,000-hour lifespan. 5-year professional warranty.

  • Rated Power

    200w

  • Nominal Voltage

    220-240V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    28000

  • Beam Angle (º)

    60º / 90º

  • Luminous Efficiency (Lm/W)

    135Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    467x373x66

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€107.36
No tax
Ángulo de apertura: 60º
  • 60º
  • 90º



Download PDF
  • Video: LED Floodlight 200W | MAXLITE | 3CCT SOSEN Driver | IP65 160Lm/W | 5 Years Warranty

LED Floodlight 200W| MAXLITE | 3CCT SOSEN Driver | IP65 160Lm/W | 5 Years Warranty

The professional MAXLITE LED Floodlight is designed to offer maximum versatility, efficiency, and durability in architectural, industrial, and urban lighting projects. Its modular design and advanced technology make it a premium solution for demanding environments where light precision and resistance to environmental conditions are essential.

Adjustable Power
Thanks to its DIP switch adjustment system, the floodlight allows selection between 100W, 150W, or 200W in a single unit, optimizing energy consumption and adapting to each lighting need without hardware changes.

Color Temperature Control
It integrates 3CCT technology, allowing selection between 3000K, 4000K, or 6500K, providing flexibility to adjust the light tone to create warm, neutral, or cool atmospheres according to the project type.

Interchangeable Optics
Standard equipped with a 90° optic that offers a precise and uniform light beam. It can be replaced by a 60° lens for greater focus or the standard lens can be removed to widen the beam angle up to 120°, allowing coverage of larger areas.

  • Standard 90° optic included for precise and uniform beam.

  • Option for 60° lens to further focus light on specific points.

  • Possibility to remove the standard lens to widen the beam angle up to 120°, ideal for wide area lighting.

This modular lens system allows adapting the light distribution to each application, from pinpoint façade lighting to coverage of large surfaces.

Robust Construction
Manufactured with high-quality materials and protected with IP65 rating against water and dust, as well as IK08 against impacts, the MAXLITE is ready to withstand extreme outdoor conditions.

Reliability and Safety
The high-efficiency SOSEN driver guarantees stable and safe power supply, while the anti-condensation valve prevents internal moisture buildup. The quick connector simplifies installation, reducing time and costs.

Long Life and Warranty
With a power factor of 0.97 and an estimated life of 50,000 hours, this floodlight offers durable performance, backed by a 5-year professional warranty.

Professional Applications:

  • Facade and building illumination

  • Industrial areas and warehouses

  • Parking lots and security zones

  • Sports fields and recreational spaces

  • Street and public lighting

  • Architectural and landscape lighting projects

At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet for each LED product.

FL200W-CCT-91370-60

Data sheet

REFERENCE
FL200W-CCT-91370
Rated Power
200w
Nominal Voltage
220-240V
Colour
3CCT SELECT 3000K-4000K-6500K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+Glass
Luminosity-Lm
28000
Number & Type of LEDs
SMD 2835
Beam Angle (º)
60º / 90º / 120º
Luminous diodo LED (Lm/W)
160 Lm/w
Luminous Efficiency (Lm/W)
135Lm/W
Certifications
CE, CMIM, RoHS
IP
IP65-Outdoor
Diode Life Expectancy (H)
50.000
Dimensions (mm)
467x373x66mm
Power Factor (PF)
0.97
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Adjustable Power 200W, 150W,100W
Other Information
Surge protector 2K
Impact Protection (IK)
IK08
Driver included
SOSEN DRIVER
Energy Rating (2023 - UE-2019/2015)
E
Warranty Years
5
