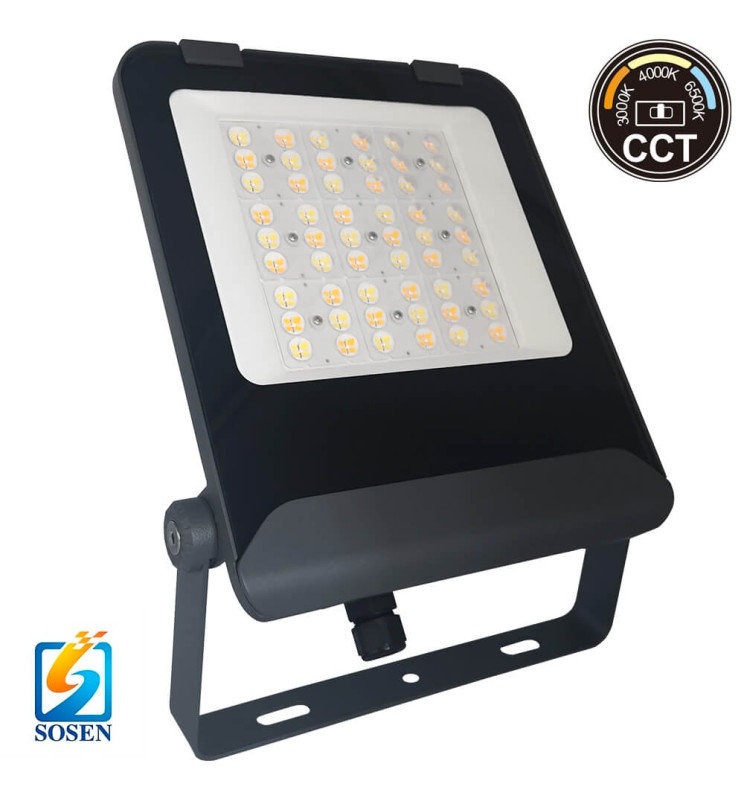

LED Floodlight 100W | MAXLITE | 3CCT SOSEN Driver | IP65 160Lm/W | 5 Years Warranty

FL100W-CCT-91369-90

Professional MAXLITE LED Floodlight with adjustable power (50W/80W/100W) via DIP switch, ideal for demanding lighting applications in architectural, industrial, or urban projects requiring versatility and high performance. Features 3CCT technology (3000K/4000K/6500K), high-efficiency SOSEN driver, and IP65/IK08 protection. Comes standard with a 90° optic for precise lighting, with the option to replace it with a 60° lens for greater focus or remove the standard lens to expand the beam angle up to 120°, adapting light distribution to each application. With quick connector and anti-condensation valve, it ensures safe installation, long-lasting performance, and a 50,000-hour lifespan. 5-year professional warranty.

  • Rated Power

    100w

  • Nominal Voltage

    220-240V

  • CRI - Chromatic Rendiment Index

    80

  • Luminosity-Lm

    14000 Lm

  • Beam Angle (º)

    60º / 90º

  • Luminous Efficiency (Lm/W)

    135Lm/W

  • IP

    IP65-Outdo

  • Diode Life Expectancy (H)

    50.000

  • Dimensions (mm)

    383x293x61

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€74.30
No tax
Ángulo de apertura: 90º
  • 60º
  • 90º



Download PDF
  • Video: LED Floodlight 100W | MAXLITE | 3CCT SOSEN Driver | IP65 160Lm/W | 5 Years Warranty

LED Floodlight 100W | MAXLITE | 3CCT SOSEN Driver | IP65 160Lm/W | 5 Years Warranty

The MAXLITE professional LED floodlight is designed to deliver maximum versatility, efficiency, and durability in architectural, industrial, and urban lighting projects. Its modular design and advanced technology make it a premium solution for demanding environments where light precision and resistance to environmental conditions are crucial.

Adjustable power
Thanks to its DIP switch adjustment system, the floodlight allows selection between 50W, 80W, or 100W in a single unit, optimizing energy consumption and adapting to each lighting need without changing the hardware.

Color temperature control
It integrates 3CCT technology, enabling selection between 3000K, 4000K, or 6500K, offering flexibility to adjust light tone for warm, neutral, or cool atmospheres depending on the project.

Interchangeable optics
Equipped as standard with a 90° optic for a precise and uniform light beam, it can be replaced with a 60° lens for greater focus or removed entirely to widen the beam angle to 120°, covering larger areas.

Robust construction
Built with high-quality materials and protected with IP65 rating against water and dust, as well as IK08 against impacts, the MAXLITE is ready to withstand extreme outdoor conditions.

Reliability and safety
The high-efficiency SOSEN driver ensures stable and safe power supply, while the anti-condensation valve prevents internal moisture build-up. The quick connector simplifies installation, reducing time and labor costs.

Long lifespan and warranty
With a power factor of 0.97 and an estimated lifespan of 50,000 hours, this floodlight offers long-lasting performance backed by a 5-year professional warranty.

Professional Applications:

  • Facade and building illumination

  • Industrial areas and warehouses

  • Parking lots and security zones

  • Sports fields and recreational spaces

  • Street and public lighting

  • Architectural and landscape lighting projects

At FactorLED we ensure that our products have a QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet for each LED product.

FL100W-CCT-91369-90

Data sheet

REFERENCE
FL100W-CCT-91369
Rated Power
100w
Nominal Voltage
220-240V
Colour
3CCT SELECT 3000K-4000K-6500K
CRI - Chromatic Rendiment Index
80
Construction Material
Aluminiun+Glass
Luminosity-Lm
14000 Lm
Number & Type of LEDs
SMD 2835
Beam Angle (º)
60º / 90º / 120º
Luminous diodo LED (Lm/W)
160 Lm/w
Luminous Efficiency (Lm/W)
135Lm/W
Certifications
CE, CMIM, RoHS
IP
IP65-Outdoor
Diode Life Expectancy (H)
50.000
Dimensions (mm)
383x293x61mm
Power Factor (PF)
0.97
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Other Information
Adjustable Power 100W, 80W, 50W
Other Information
Surge protector 2K
Impact Protection (IK)
IK08
Driver included
SOSEN DRIVER
Energy Rating (2023 - UE-2019/2015)
E
Warranty Years
5
