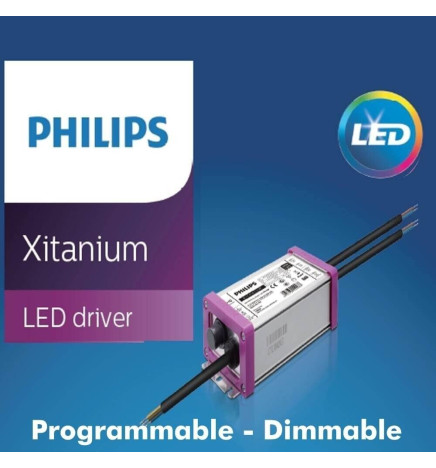

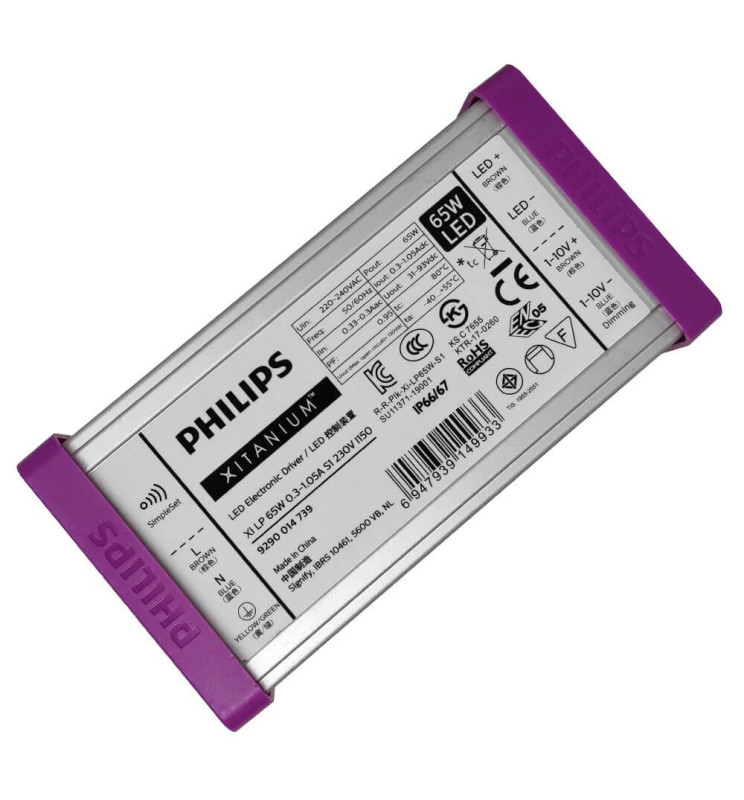

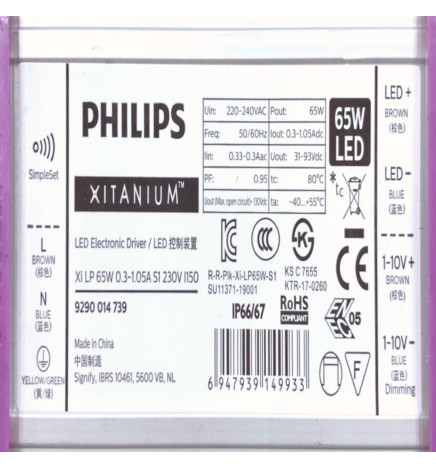

Driver Dimmable Programmable Philips XITANIUM Driver for LED up to 65W - 2100 mA - 5 years Warranty
  • Driver Dimmable Programmable Philips XITANIUM Driver for LED up to 65W - 2100 mA - 5 years Warranty
  • Driver Dimmable Programmable Philips XITANIUM Driver for LED up to 65W - 2100 mA - 5 years Warranty
  • Driver Dimmable Programmable Philips XITANIUM Driver for LED up to 65W - 2100 mA - 5 years Warranty

Driver Dimmable Programmable Philips XITANIUM Driver for LED up to 65W - 1050 mA - 5 years Warranty

XITANIUM-65W

The Philips Xitanium Driver for 65W LED luminaires is prepared for an operation of more than 50,000 hours. Protection against overvoltages incorporated in the same driver of (di. Mode) 6K (comm. Mode) 10K.


Input: AC220-240V Output DC31-93V

Out: 03-1.05Adc (Amps DC)

  • Rated Power

    65W

  • Nominal Voltage

    220-240V

  • IP

    IP67-Outdo

  • Dimensions (mm)

    15*4.5*7cm

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€33.55
No tax



Download PDF

Philips XITANIUM dimmable programmable driver for LED luminaires up to 65W - 1050mA - 5 years Warranty


Philips Xitanium Divers are specifically designed for maximum reliability and flexibility in low voltage outdoor applications.

They have a surge protector, these Divers are very durable with a useful life of more than 50,000 hours that provide constant high performance to the luminaires, even after multiple indirect rays (special protection for outdoor use).

The programmable Driver allows to change the brightness automatically to adapt intelligently to the different night scenes that are necessary in the luminaire. The Philips Driver allows 5 different schedules throughout the night. Thus it also allows to regulate the desired consumption at all times.

It also allows programming the duration of the transition changes, so that the power lines and electrical connectors do not suffer during power changes; For example, it is possible to program the starting of the lines to be done progressively for 60 seconds, thus avoiding overloads in the connectors and in the electrical lines.
Benefits:

• AOC (Adjustable Output Current) gives full flexibility to output different currents to specification in different projects.


• Robust specifications for humidity, vibration and extreme temperature protection.


• High quality of light during the life of the driver.

Philips XITANIUM Driver Applications for LED Luminaires up to 65W - 1050mA - 5 years Warranty


• Public and road lighting.
• Wide area lighting.
• tunnel lighting.
• High-bay lighting.

XITANIUM-65W

Data sheet

REFERENCE
XITANIUM-65W
Rated Power
65W
Nominal Voltage
220-240V
Construction Material
Aluminium
Certifications
CE - ENEC 05 - CCC - RoHS
IP
IP67-Outdoor
Dimensions (mm)
15*4.5*7cm
Power Factor (PF)
0.95
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-40ºC +55ºC
Other Information
Inside: AC220-240V - Outside: DC31-93V --- 0.3A-1.05Adc
Warranty Years
PHILIPS XITANIUM 5 YEARS
