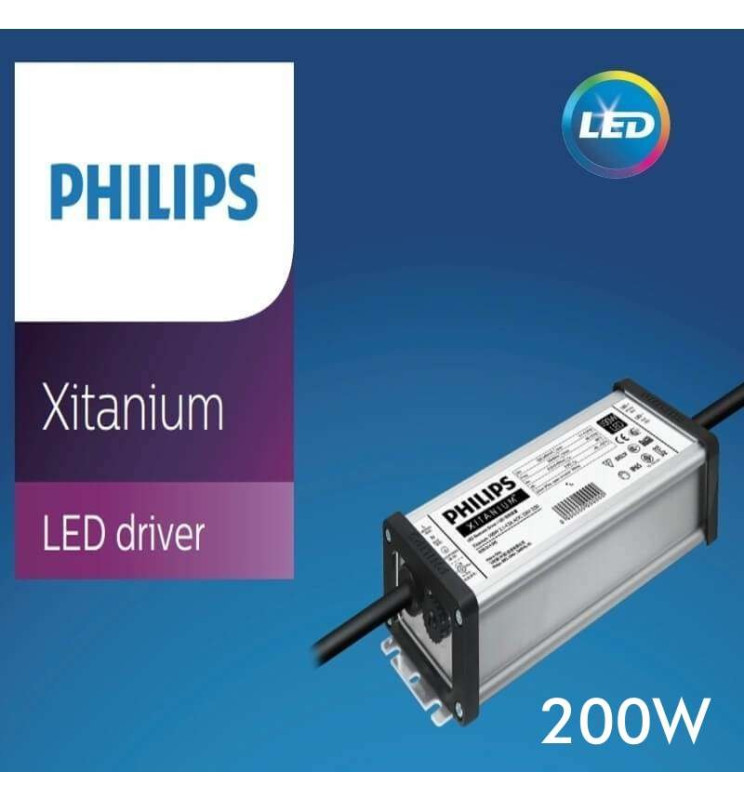

Philips XITANIUM Driver for LED up to 200W - 2800 mA - 5 years Warranty
  • Philips XITANIUM Driver for LED up to 200W - 2800 mA - 5 years Warranty
  • Philips XITANIUM Driver for LED up to 200W - 2800 mA - 5 years Warranty
  • Philips XITANIUM Driver for LED up to 200W - 2800 mA - 5 years Warranty

Philips XITANIUM Driver for LED up to 200W - 2800 mA - 5 years Warranty

XITANIUM-200W

The Philips Xitanium Driver for 200W LED luminaires comes ready for 100,000 hours of operation. Surge protection incorporated in the same driver.

Input: AC198-264V Output DC71-21V

Iout: 2.8-5.6Adc (Amps DC)

  • Rated Power

    200w

  • Nominal Voltage

    198-264V

  • IP

    IP65-Outdo

  • Dimensions (mm)

    230*65*h45

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
€74.86
No tax
There are not enough products in stock




Download PDF
  • Video: Philips XITANIUM Driver for LED up to 200W - 2800 mA - 5 years Warranty

Philips XITANIUM Driver for LED Luminaires up to 200W - 2800mA - 5 years Warranty

The Philips Diver Xitanium is specifically designed for maximum reliability and flexibility in low-voltage outdoor applications.

Equipped with a surge protector, these Divers are very durable with a life span of 100,000 hours providing a consistently high performance to the luminaires even after multiple indirect lightning strikes (special protection for outdoor use).

Benefits:

- The low voltage/high current output is adapted to the application of the luminaire
of LED chains connected in parallel.

- The IP65 housing can be placed directly outside.

- Fast solution without redesigning the luminaires (perfect for tunnel lighting applications).

- AOC (adjustable output current) gives total flexibility to output different currents to specification in different projects.


- Easy adjustment of output current/voltage only by means of a simple screwdriver


- Robust specifications for humidity, vibration and extreme temperature protection.


- High quality of light during the life cycle of the driver.

Applications of Philips XITANIUM Driver for LED Luminaires up to 200W - 2800mA - 5 years Warranty

- Public and road lighting.
- Lighting of large areas.
- Tunnel lighting.
- High altitude lighting.

XITANIUM-200W

Data sheet

REFERENCE
XITANIUM-200W
Rated Power
200w
Nominal Voltage
198-264V
Construction Material
Aluminium
Certifications
CE - ENEC 05 - CCC - RoHS
IP
IP65-Outdoor
Dimensions (mm)
230*65*h45mm
Power Factor (PF)
0.99
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-40ºC +50ºC
Other Information
Inside: AC220-240V - Outside: DC71-21V --- 2.8A-5.6Adc
Warranty Years
PHILIPS XITANIUM 5 YEARS
