Downlight LED 15W Square - OSRAM CHIP DURIS E 2835 - CCT - UGR17

90809

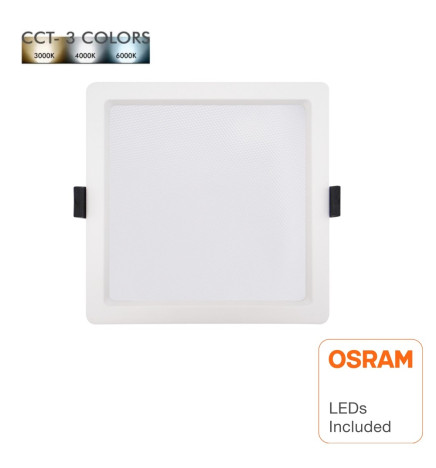

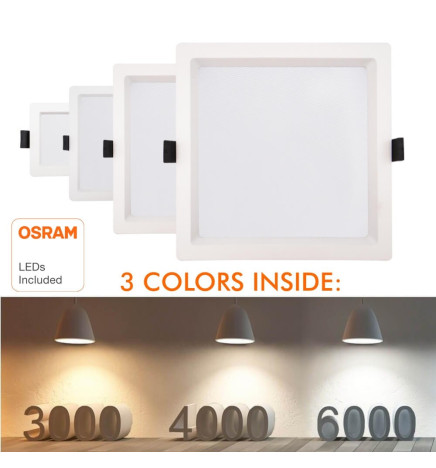

SELECTABLE COLOR: Our 15W LED Square Downlight OSRAM CHIP DURIS E 2835 has a color temperature selector, choosing between cold white, neutral white and warm white. The opening angle of the luminaire is 120º. Start saving now on your electric bill5

  • Rated Power

    15w

  • Nominal Voltage

    85V-265V

  • CRI - Chromatic Rendiment Index

    85

  • Luminosity-Lm

    1800

  • Beam Angle (º)

    120º

  • Luminous Efficiency (Lm/W)

    120 Lm/W

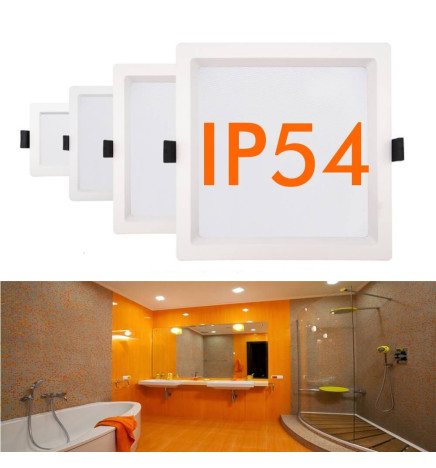

  • IP

    IP54

  • Diode Life Expectancy (H)

    40.000

  • Dimensions (mm)

    145x145mm

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€9.83
No tax



Download PDF

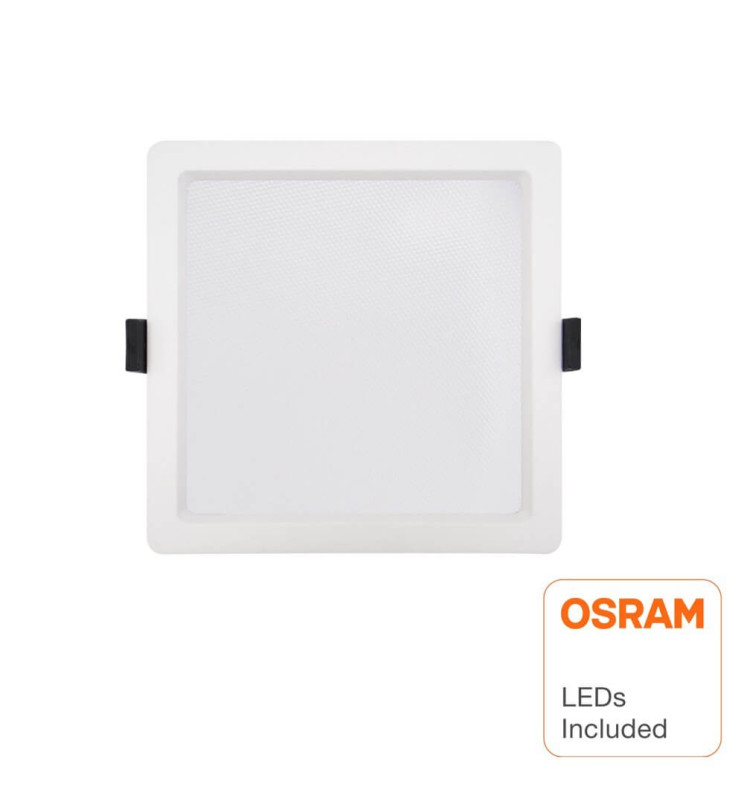

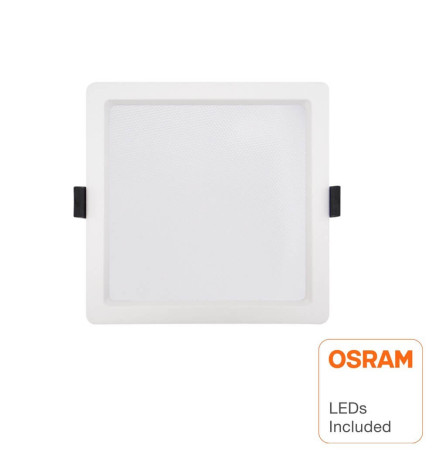

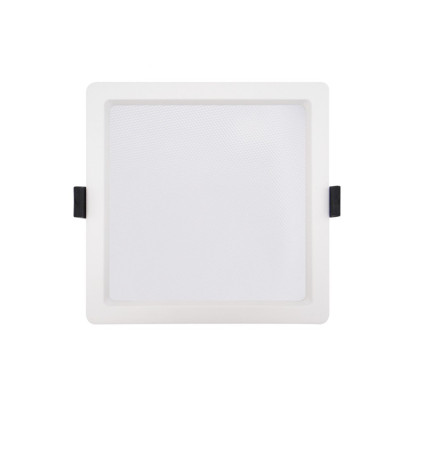

15W LED Downlight Square - OSRAM CHIP DURIS E 2835 - CCT - UGR17

Our Downlingt with 15W power is characterized by its simple operation getting precise and personalized lighting in any interior space. With this type of Led luminaire you can get a light tailored for all types of business.

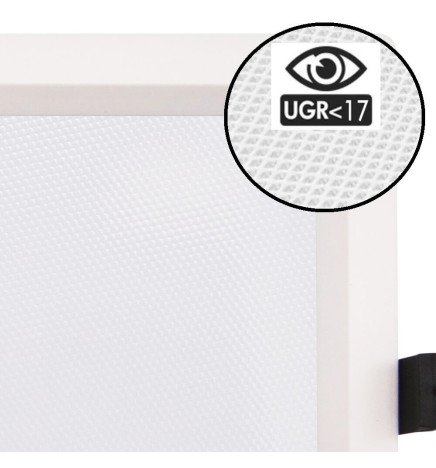

In addition, with its high UGR, you won't have any problems with glare, as it has a UGR17.

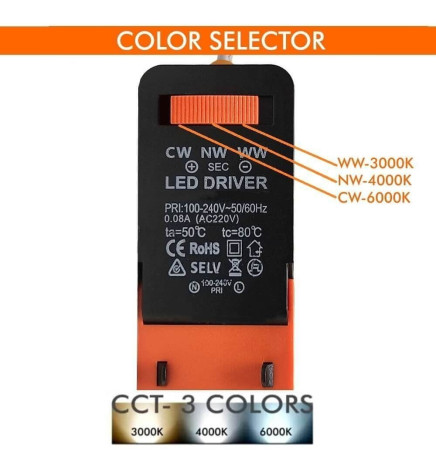

Thanks to its color selection system you can adapt it to the needs of your business or your home, being able to choose the desired color for each room or room.

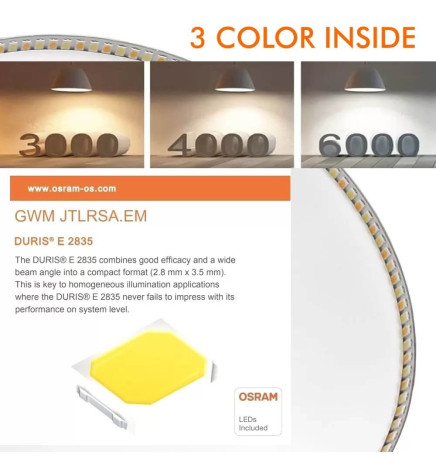

The high-efficiency light source with OSRAM chip SMD2835 technology delivers high luminosity, which will perfectly replace traditional spotlights providing savings of over 80%.

With its functional delayed design, its installation is much simpler.

Its high color rendering index greater than 85 guarantees a reproduction of colors naturally.

Uses of the 15W LED Square - OSRAM CHIP DURIS E 2835 - CCT - UGR17

  •      Stores
  •      Restaurants
  •      Museums
  •      Commercial galleries
  •      Malls
  •      Offices

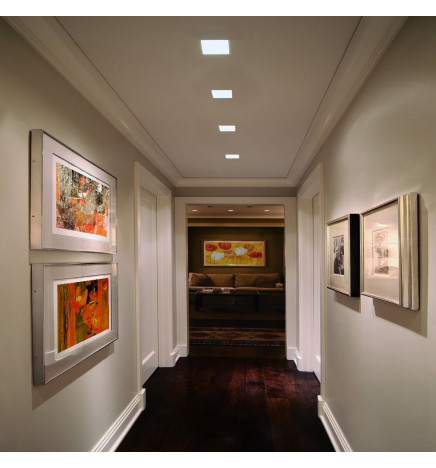

  •      Hallways
  •      Showcase


In FactorLED we ensure that our products are guaranteed by QUALITY and offer all the necessary elements for the DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

90809

Data sheet

REFERENCE
DW-SQ-15WCCT
Rated Power
15w
Nominal Voltage
85V-265V
Colour
SELECTABLE COLOUR: 3000K-4000K-6000K
CRI - Chromatic Rendiment Index
85

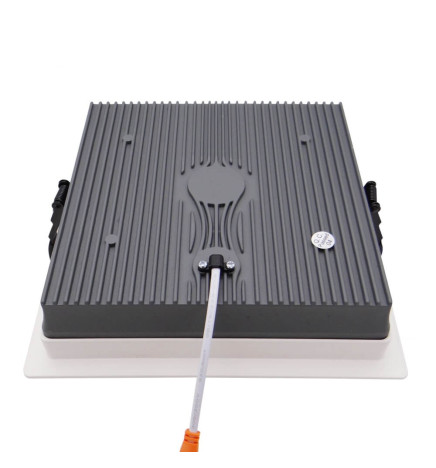

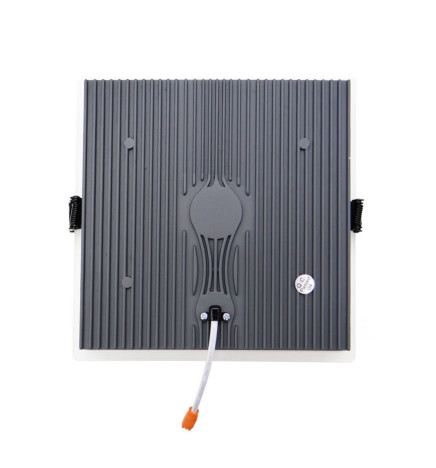

Construction Material
Aluminiun+PC
Luminosity-Lm
1800

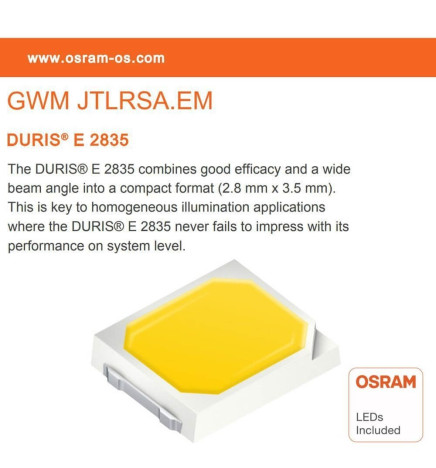

Number & Type of LEDs
SMD 2835 OSRAM CHIP
Beam Angle (º)
120º
Luminous diodo LED (Lm/W)
140 Lm/W
Luminous Efficiency (Lm/W)
120 Lm/W
Certifications
CE - ROHS
IP
IP54
Diode Life Expectancy (H)
40.000

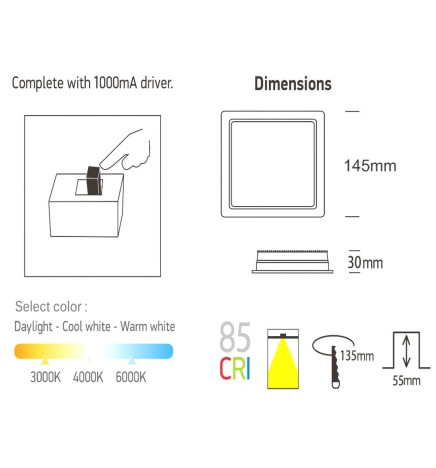

Dimensions (mm)
145x145mm H30mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Starting Time (s)
0,2s
Cut-out Size (mm)
135x135mm
Glare Rating (UGR)
17
Energy Rating (2021-UE-2019/2015)
A+
Warranty Years
3
