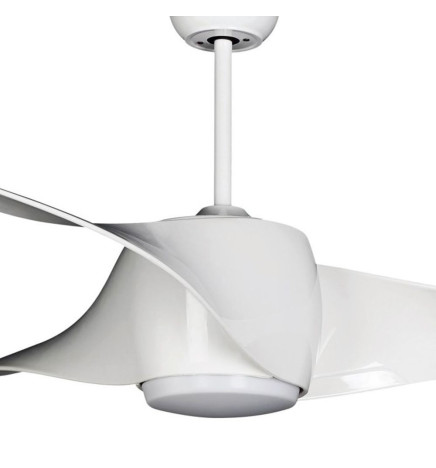

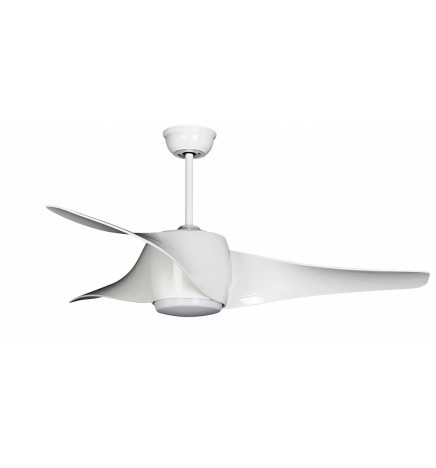

LED Ceiling Fan MUSTANG - 76W - 3000K -127cm

Reference: VT12776W3K

Fan with AC motor and 127cm diameter, with metal body and white ABS blades that surround the motor. Includes two installation posts and timer on the control.

Reduce the ambient temperature with the cool air from our fans while saving on your electricity bill thanks to LED lighting.

18w
220-240V
80
1600
180º
IP20

Brightness calculation

1.Technical characteristics of the luminaire:

Indicate the technical characteristics of the LED projector or luminaire you wish to install:

Lumens (Lm): Luminous flux of the luminaire to be installed.

Angle (º): Angle of the luminaire to be installed.

Height (m): Total height in meters of the space (room) (axis "z").

2.Calculation of the individual capacity of the chosen luminaire:

Calculation of the luminous power and luminance of the LED luminaire defined in point 1.

Illuminated radius:

Total illuminated covered area:

3.Theoretical result:

Result of the luminous power and luminance.

Luminous Intensity (Candela - cd)

Surface illumination (lx)

Fast and secure delivery

Download technical datasheet

We offer professional prices for LED lighting

€163.12

No tax

Last items in stock

Download PDF

Description
Product Details

LED Ceiling Fan MUSTANG - 76W - 3000K - IP20

Fan with AC motor and 127cm diameter, with metal body and white ABS blades that surround the motor. Includes two installation posts and timer on the control.

Thanks to its Reverse System, the fan has two functions, summer/winter option, with this mode the engine reverses the rotation of the blades getting to dissipate the hot air in summer and evenly distribute the hot air from the heating in winter, which improves the thermal sensation and optimizes the operation of the heating.

All our fans use the best technology to achieve optimum performance. Its silent system makes it work without causing uncomfortable noises in the environment.

Uses for LED Ceiling Fan MUSTANG - 76W - 3000K - IP20

Halls
Offices
Bedrooms
Kitchens
Porches
Waiting Rooms
Restaurants

In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.

Technical Data

Colour: White	Colour temperature: 3000K
Blade colour: White	Luminous flux: 1600lm
No. of blades: 3	Angle of aperture: 180
Type of blades	CRI: 80
Finish: Gloss	IP: 20
Material: Metal	Dimmable: No
Diffuser material: Acrylic	Energy category: F
Blade material: ABS	Class: I
Motor Type: AC	Voltage: 220-240 V
Motor warranty: 5	Frequency: 50Hz
Control: Yes	Life hours: 30000h
Installation: Two stems	Number of ignitions: 10000
Max. ceiling inclination: 15º.	Packaging dimensions: 841x361x225mm
Light Source: LED	Packaging volume: 0.0709m3
Power: 18W	Net weight: 10kg

Reference VT12776W3K

Data sheet

REFERENCE: VT12776W3K
Rated Power: 18w
Nominal Voltage: 220-240V
Colour: 3000K
CRI - Chromatic Rendiment Index: 80
Luminosity-Lm: 1600
Beam Angle (º): 180º
Certifications: CE - ROHS
IP: IP20
Energy Rating (2023 - UE-2019/2015): F
Warranty Years: 3
Main colour: White
Finishing: Glossy
Colour of the blades: White
Blade material: ABS
Body material: Metal
Number of blades: 4
Diffuser material: Acrylic
Engine type: AC
Maximum roof pitch: 15º
Installation: Dos tijas
Volume: 0.0709m3
Light source: LED
