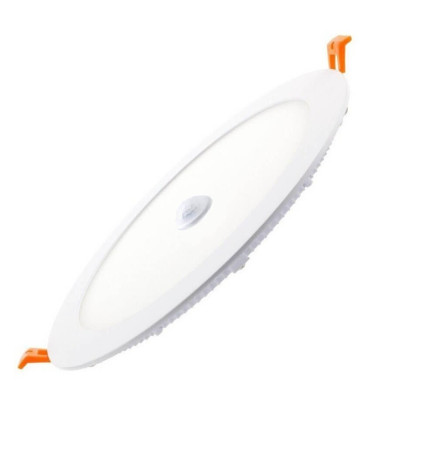

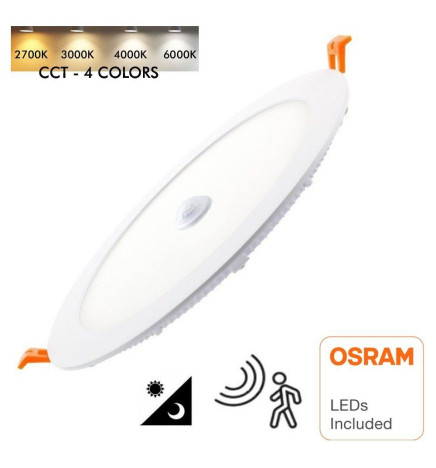

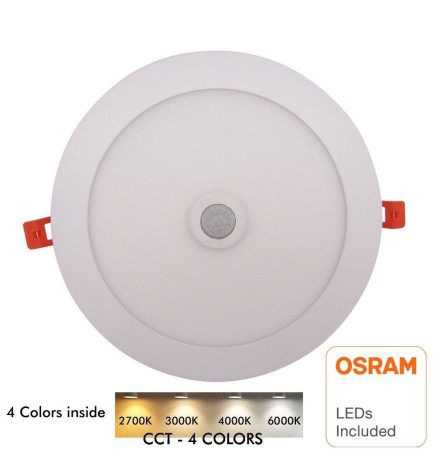

24W - 22W- 20W -18W LED LED Circular Downlight - Motion Detector - 2700K+CCT - OSRAM CHIP
90813-CCT-24W

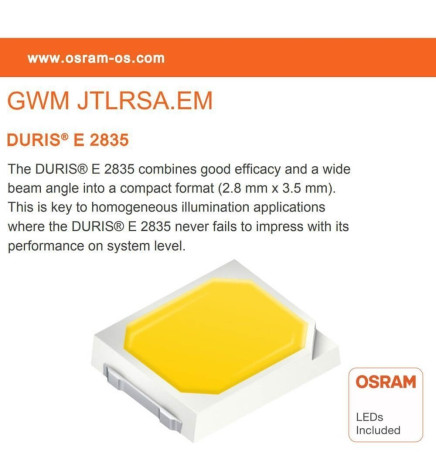

OSRAM CHIP DURIS E 2835 LED panel with motion sensor and brightness control; Selectable power: 18w-20w-22w-24w. Incorporates 4 Selectable colours of light colour (2700K-3000K-4000K-5700K). It can be configured to switch on depending on the outside light (all day, dusk or total darkness), in addition this downlight can regulate the switching on time according to the needs. Made of aluminium with a white finish, it is a product specially designed to save money. Start saving now!
-
24W-22W-20
-
85V-265V
-
85
-
18W-2250Lm
-
120º
-
125 Lm/W
-
40.000
-
Ø225mm H20
Fast and secure delivery
We offer professional prices for LED lighting
€15.95
No tax
24W - 22W - 20W - 18W Circular LED Panel with Motion Detector - 2700K+CCT - OSRAM CHIP
LED CCT LED Panel with LED MOTION SENSOR made of aluminium. With a white finish and a selectable power of 24W - 22W - 20W - 18W - it is a product specially designed for transit areas.

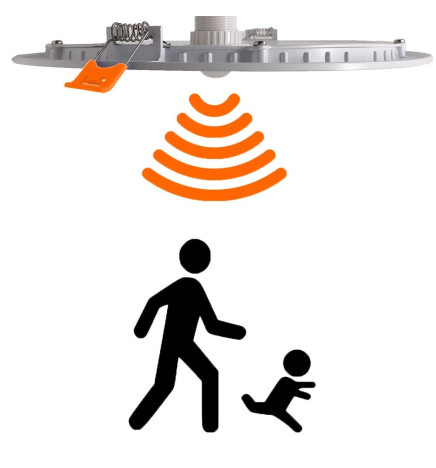

It has a range of 6 metres.

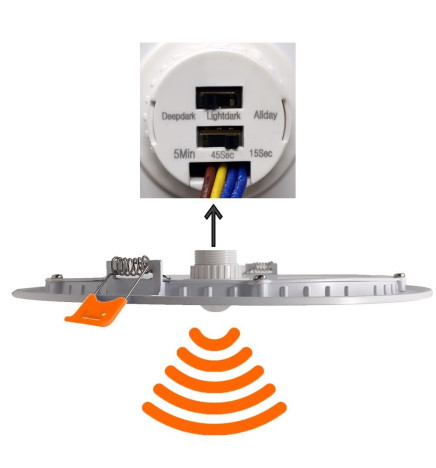

Thanks to its 3 brightness detector options, its operation can be regulated to make it work according to the needs. The detector also allows 3 time settings: 15 seconds - 45 seconds - 5 minutes.

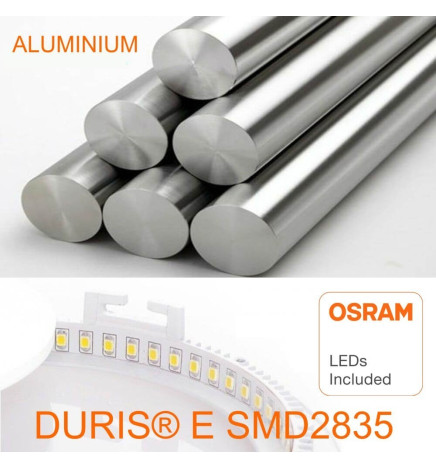

Inside it includes high brightness LED diodes OSRAM Chip to get a quality lighting, thanks to its great resistance the spotlight has a greater durability reaching 100,000 cycles of ignition while getting a great energy savings on your electricity bills.
This product has an IP20 protection, so it is a product for indoor use. With its 120° primary angle, a uniform light is obtained in any space, creating a uniform ambience.

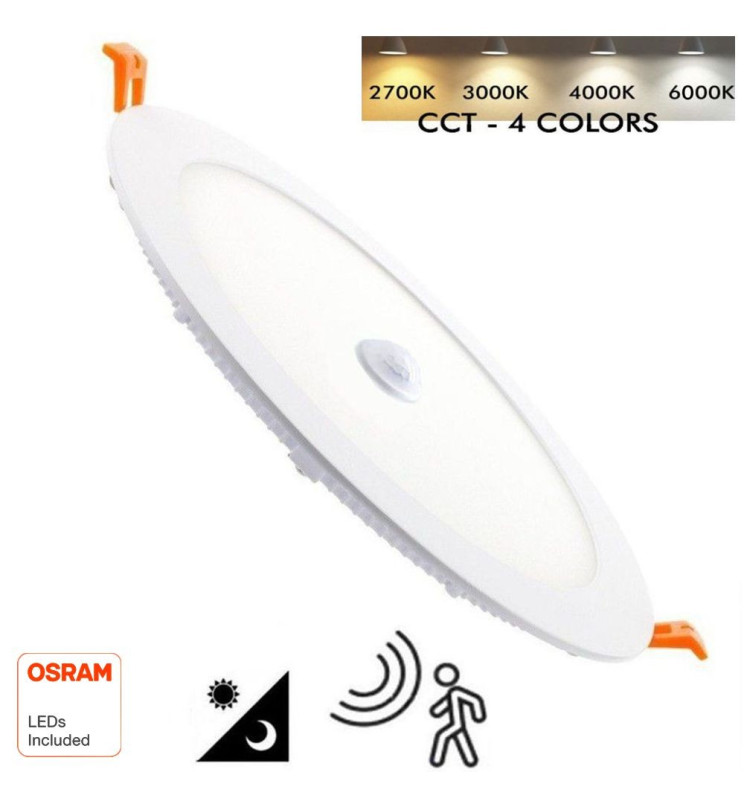

On the LED Driver of the luminaire you can select the power -W- and the colour of the light that you want the luminaire to give you.
Uses of the Circular 24W - 22W - 20W - 18W LED Panel with Motion Detector - CCT - OSRAM CHIP
- Home lighting: bathrooms, kitchens, corridors, living room.
- Business lighting: Bathrooms, halls, offices.
- Commercial lighting: Shopping centres and small shops.
In FactorLED we ensure that our products have QUALITY guarantee and offer all the necessary elements for DISTRIBUTION, IMPORT or WHOLESALE, including the technical data sheet of each LED product.
90813-CCT-24W
Data sheet
- 90813-CCT
- 24W-22W-20W-18W
- 85V-265V
- SELECTABLE COLOR: 2700K -3000K-4000K-6000K
- 85
- Aluminiun+PC
- 18W-2250Lm 20W -2500Lm 22W -2750Lm 24w-3000Lm
- SMD 2835
- 120º
- 160 Lm/w
- 125 Lm/W
- CE - ROHS
- 40.000
- Ø225mm H20mm
- 50/60Hz
- -20°C ~ +55°C
- 100.000
- 0,2s
- Ø205mm
- Infrared
- DRIVER NO FLICK
- A+
- E
- 3
- 6 m.
- Programmable: 15 Sec - 45 Sec. -5Min
- White
REFERENCE
Colour
Construction Material
Number & Type of LEDs
Luminous diodo LED (Lm/W)
Certifications
Frequency (Hz)
Temperature Range (ºC)
On/Off Cycles
Starting Time (s)
Cut-out Size (mm)
Control modes
Driver included
Energy Rating (2021-UE-2019/2015)
Energy Rating (2023 - UE-2019/2015)
Warranty Years
Range (m)
Time-Delay
