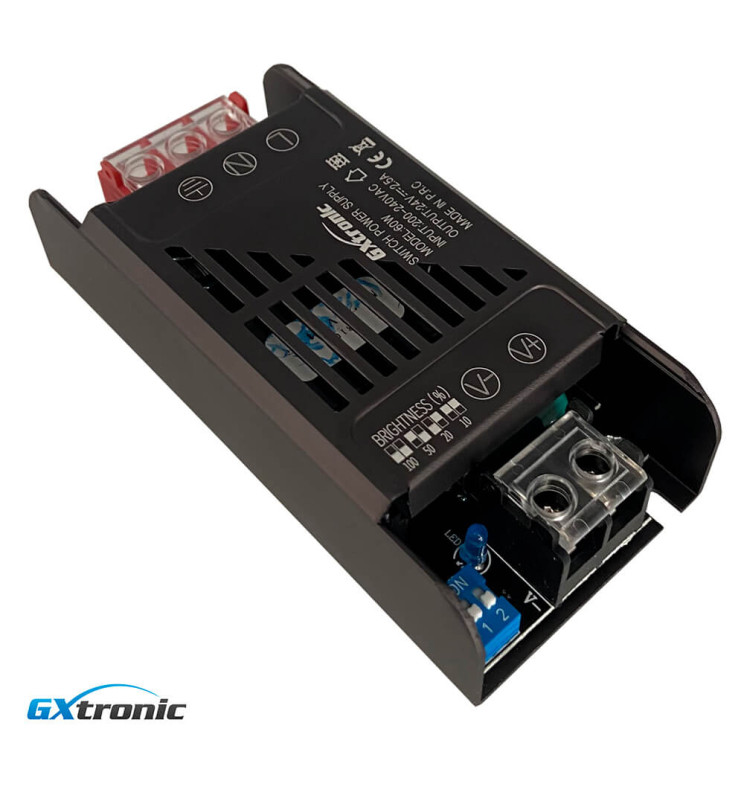

24V 60W 2.5A Power Supply - Aluminum IP20 - GXtronic

91884

Power Supply 60W 24V DC for LED Strips – Efficiency and Advanced Technology, equipped with gallium nitride (GaN) technology for higher efficiency and a more compact size. Its compact, silent, and high-efficiency design ensures a stable and reliable power supply. Additionally, it features natural convection cooling, preventing overheating. The perfect choice for safe, durable, and high-performance LED lighting.

It incorporates a programmable manual regulator: 1- 100%. 2-50% 3- 20% 4-10%

  • Rated Power

    60w

  • Nominal Voltage

    200V - 240

  • IP

    IP20

  • Diode Life Expectancy (H)

    30.000

  • Dimensions (mm)

    128*50*25

Brightness calculation
Fast and secure delivery
Download technical datasheet
We offer professional prices for LED lighting
Certificado CE Certificado ROHS
€7.36
No tax



Download PDF

24V 60W 2.5A Power Supply - Aluminum IP20 - GXtronic

Power Supply 60W 24V DC – Maximum efficiency, compact design, and superior reliability. Equipped with Gallium Nitride (GaN) technology, it outperforms traditional silicon-based power supplies by providing more efficient energy conversion and significantly reducing heat dissipation. Its innovative design makes it the perfect choice for LED lighting, electronic devices, industrial automation, and applications where space and efficiency are critical.

Advantages of GaN Technology in the 24V Power Supply

✔ Higher energy efficiency
GaN reduces resistance and switching losses, optimizing energy conversion. This results in lower electricity consumption and minimal heat generation, extending the device's lifespan.

✔ Reduced size and weight
Thanks to its thermal efficiency, the power supply is more compact and lightweight, making it easier to install in tight spaces and portable applications.

✔ Fanless, natural cooling
The low heat emission enables passive cooling, eliminating the need for fans and ensuring silent, maintenance-free operation.

✔ Higher switching speed
GaN allows operation at higher frequencies, reducing the size of internal components and improving overall system efficiency.

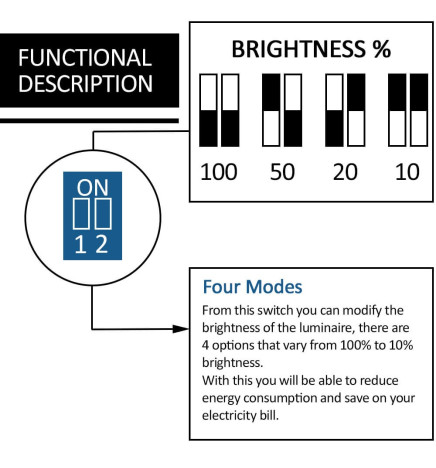

Programmable Modes – Full Power Control

For added versatility, this power supply includes 4 manual modes, allowing you to adjust power output according to installation needs:

  • Mode A: 100% power supply – Ideal for maximum brightness.
  • Mode B: 50% power supply – Reduces energy consumption while maintaining balanced brightness.
  • Mode C: 20% power supply – Perfect for soft lighting.
  • Mode D: 10% power supply – Ideal for ambient or decorative lighting.

Recommended Applications

✔ LED lighting for indoor and outdoor use.
✔ Use in industrial automation and smart home systems.
✔ Power supply for electronic devices and robotics.
✔ Applications in digital signage and LED displays.

At FactorLED, we ensure that our products are of guaranteed QUALITY and provide all the necessary elements for DISTRIBUTION, IMPORT, or WHOLESALE, including the technical specifications of each LED product.

91884

Data sheet

REFERENCE
91884
Rated Power
60w
Nominal Voltage
200V - 240V AC
Construction Material
Aluminium
Certifications
CE - ROHS
IP
IP20
Diode Life Expectancy (H)
30.000

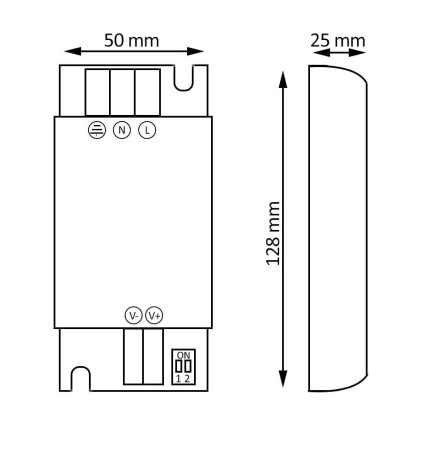

Dimensions (mm)
128*50*25 mm
Frequency (Hz)
50/60Hz
Temperature Range (ºC)
-20°C ~ +55°C
On/Off Cycles
100.000
Other Information
Driver Regulable: 100% - 50% - 20% y 10%
Driver included
Driver GXTronic
Energy Rating (2021-UE-2019/2015)
A
Warranty Years
3
